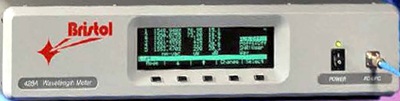

The Bristol instruments 428B Multi-Wavelength Meter combines proven Michelson interlerometer-based technology with fast Fourier transform analysis. This results in the ability to measure the wavelength and power of up to 250 discrete optical signals. Wavelength is measured to an accuracy as high as ± 0.3 pm and power is measured to an accuracy of ± 0.5 dB. In addition, the 428B system automatically calculates OSNR to greater than 40 dB. The wavelength accuracy of the 428B system is maintained over long periods of time because it is continuously calibrated with a built-in HeNe laser wavelength standard. A standard HeNe laser is used as the wavelength reference in the model 428B.. Specifications. Optical Signal: CW and modulated. Wavelength Range: 1270 to 1650 nm (182 to 236 THz). Absolute Accuracy: ± 0.75 parts per miliion, (± 1.2 pm at 1550 nm). Differential Accuracy: ± 0.5 parts per miliion. Minimum Resolvable Seperation: 15 GHz, equal power lines input. Wavelength Display Resolution: 0.0001 nm. Power Calibration Accuracy: ± 0.5 dB, at ±30 nm from 1310 and 1550 nm. Flatness: ± 0.2 dB (1270 - 1600 nm), 30 nm from any wavelength. Linearity: ±0.3 dB (1270 - 1600 nm), lines above -30 dBm. Polarization Dependence: ± 0.5dB (1270-1600 nm). Power Display Resolution: 0.01 dB. Signal-To-Noise Ratio: > 40 dB with 100 averages, 100 GHz channel spacing; > 35 dB with 100 averages. 50 GHz channel spacing. Optical Input Signal Sensitivity Single line input: -40 dBm (1270 to 1600 nm), -30 dBm (1600 to 1650 nm). Optical Input Signal Sensitivity Multiple line input: 30 dB below total input power, but not less than single line input sensitivity. Maximum Power Displayed level: +10 dBm, sum of all lines input. Maximum Power Safe level: +18 dBm, sum of all lines input. Return Loss: 35 dB (UPC), 50 dB (APC). Maximum Number of Lines: 250. Optical Input: 9/125 um single-mode fiber (FC/UPC or FC/APC). Instrument Interface: SCPI via USB 2.0, Ethernet. and optional GPIB.
|
