Keysight (Agilent) 4156A REPAIR and Keysight (Agilent) 4156A CALIBRATION

Custom-Cal has a high success rate in the repair of the Keysight (Agilent) 4156A. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 4156A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Semiconductor Tester?
Shop for Comparable Products on our  used Semiconductor Tester page


   Keysight (Agilent) 4156A   Description / Specification:

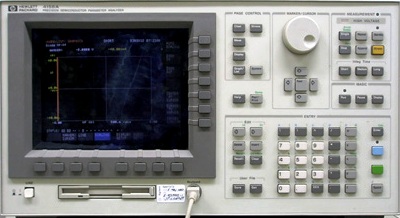

Keysight (Agilent) 4156A Precision Semiconductor Parameter Analyzer

The HP 4156A Precision Semiconductor Parameter Analyzer offers four built-in source/monitor units (SMUs), two voltage source units (VSUs), and two voltage monitor units (VMUs). It utilizes full kelvin remote sensing on each SMU. At any time, you can add the HP 41501A SMU and Pulse Generator Expander, which is supplied with a 0 V/1.6 A Ground Unit. The expander accepts two 100 mA / 100 V SMUs or one 1 A / 200 V SMU, and two specially synchronized 40 V / 200 mA / us pulse generators. The HP 4156A can perform staircase and pulse sweep measurement, and sampling (time domain) measurement using many measurement units, including units in the HP 41501A, without changing connections. Moreover you can easily perform stress-measure cycling test for reliability evaluation such as hot carrier injection and flash EEPROM test. Voltage Source Unit (VSU) Characteristics. Number of sources: 2. Maximum voltage: 20 V. Maximum current: 100 rnA. Voltage Monitor Unit (VMU) Characteristics. Number of monitors: 2. Voltage range: 0.2, 2, 20. Measurement resolution: Normal mode: 2 uV. Differential measurement mode: 1 uV. Synchronized stress/measure function, two high-voltage pulse generator units (± 40 V) . Time domain measurement: 60 us - variable intervals, up to 10,001 points.





Standard Calibration $690.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 4156A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.
