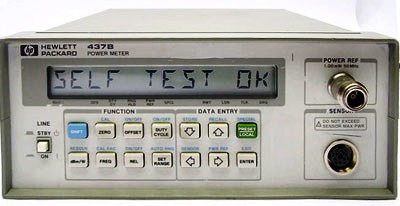

The Agilent 437B is a low-cost, high-performance, single-channel, programmable, average power meter compatible with the HP 8480 family of thermocouple and diode power sensors. Depending on which power sensor is used, the HP 437B can measure from –70 dBm (100pW) to +44 dBm (25 W) at frequencies from 100 kHz to 110 GHz. Designed for ATE systems and demanding benchtop measurements, the HP 437B power meter makes fast, accurate, and reliable average power measurements. Only three inches high and half rack wide. Specifications. Frequency Range: 100 kHz to 110 GHz, sensor dependent. Power Range: –70 to +44 dBm (100 WP to 25 W), sensor dependent. Power Sensors: Compatible with all HP 8480 series power sensors. Dynamic Range: 50 dB in 10 dB steps. Display Units: Absolute: watts, dBm; relative: percent, dB. Resolution: Selectable resolution of 0.1, 0.01, and 0.001 dB in logarithmic mode; or 1% and 0.01% of full scale in linear mode. Accuracy; Instrumentation: ±0.02 dB or ±0.5%. In REL Mode: ±0.02 dB or ±0.5% within measurement range; ±0.04 dB or 1% outside measurement range. Zero Set: ±0.5% of full scale on most sensitive range. Power Output: 100mW, factory-set to ±0.7% traceable to US National Institute of Standards and Technology. Accuracy: ±1.2% worst case (±0.9% RSS) for 1 year. Options. Opt 002 Supplies a Parallel Rear-panel Sensor Input. Opt 003 Supplies a Parallel Rear-panel Sensor Input and Moves Reference Oscillator to Rear Panel. Opt 004 Deletes the HP 11730A Sensor Cable. Opt 401 Provides Side-carrying Handle and Standoff Feet.
|
