Keysight (Agilent) 8753D REPAIR and Keysight (Agilent) 8753D CALIBRATION

Custom-Cal has a high success rate in the repair of the Keysight (Agilent) 8753D. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 8753D Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Network Analyzer, SNA, VNA?
Shop for Comparable Products on our  used Network Analyzer, SNA, VNA page or new Network Analyzer, SNA, VNA page


   Keysight (Agilent) 8753D   Description / Specification:

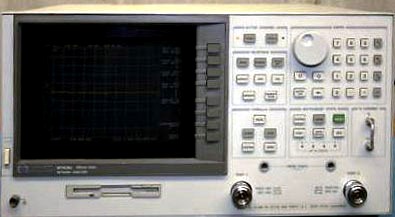

Keysight (Agilent) 8753D S-parameter Network Analyzer

The HP 8753D RF network analyzer provides affordable excellence in RF network measurement for laboratory and production testing. It has an integrated S-parameter test set for longer-lasting calibrations. The Agilent 8753D gives you a complete solution for characterizing active or passive networks, devices, or components from 30 kHz to 6 GHz. An integrated, synthesized source provides > 100 mW of output power, 1 Hz frequency resolution, and linear, log, list, power, and CW sweep types. Three tuned receivers allow independent power measurements or simultaneous ratio measurements over a wide dynamic range of 105 dB at 6 GHz (with Option 006 frequency extension) or 110 dB at 3 GHz (standard). The integrated test set allows you to measure transmission and reflection characteristics of a device to 6 GHz without a frequency doubler. Specifications. Test Port Output. Frequency Characteristics Range: 30 kHz to 3 GHz (std.); 30 kHz to 6 GHz (Option 006); 300 kHz to 3 GHz (Option 011); 30 kHz to 6 GHz (Option 011, 006). Resolution: 1 Hz. Accuracy: ±10 ppm at 25°C± 5° C. Output Characteristics. Power range: –85 to 10 dBm. Resolution: 0.05 dB. Sweep Range: 25 dB. Level Accuracy: ±1.0 dB relative to 0 dBm output level. Level Linearity: (–15 to +5 dBm) ±0.2 dB typical 30 kHz to 300 kHz; (+5 to +10 dBm) ±0.5 dB typical 30 kHz to 300 kHz. Test Port Input Characteristics. Frequency Range: 30 kHz to 3 GHz (std.); 30 kHz to 6 GHz (Option 006). Average Noise Level 3 kHz BW: –82 dBm (< –3 GHz), –77 dBm (3 to 6 GHz). Average Noise Level 10 Hz BW: –102 dBm (< –3 GHz), –97 dBm (3 to 6 GHz). Maximum Input Level: +10 dBm. Damage Level: +26 dBm or 35 Vdc. Options. Opt 002, Harmonic Measurement Capability. Opt 006 6 GHz Frequency Extension. Opt 010 Time-Domain Capability. Opt 011 Delete Built-in Test Set. Opt 075 75 ohm Impedance. Opt 1D5 High-Stability Frequency Reference.





Standard Calibration $675.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 8753D. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Averaging
Averaging is a mathematical process to reduce the variation in a measurement by summing the data points from multiple measurements and dividing by the number of points summed.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your Keysight (Agilent) 8753D REPAIR and/or Keysight (Agilent) 8753D S-parameter Network Analyzer CALIBRATION
