Keysight (Agilent) B2912A REPAIR and Keysight (Agilent) B2912A CALIBRATION

Custom-Cal has a high success rate in the repair of the Keysight (Agilent) B2912A. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) B2912A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another General Meter?
Shop for Comparable Products on our  used General Meter page


   Keysight (Agilent) B2912A   Description / Specification:

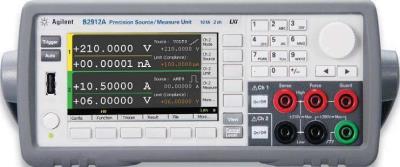

Keysight (Agilent) B2912A Precision Source/Measure Unit

The Agilent / Keysight B2912A Precision Source / Measure Unit (SMU) is a 2-channel, compact, and cost-effective bench-top SMU with the capability to source and measure both voltage and current. It is versatile to perform I/V (current vs. voltage) measurement easily with high accuracy. The integration of 4 quadrant source and measurement capabilities enables I/V measurement simply and easily without configuring multiple instruments.

Specifications:
Maximum DC Voltage: 210 V
Maximum DC Amperage: 3.03 A
Maximum Pulsed Voltage: 200 V
Maximum Pulsed Amperage: 10.5 A
Voltage Resolution: 6.5 digits
Voltage Error: ≤ ±(0.02% + 50 mV)
Voltage Source Noise: ≤ 2 mV
Current Resolution: 5.5 to 6.5 digits
Current Error: ≤ ±(0.4% + 25 mA)
Current Source Noise: ≤ 120 µA
Minimum Pulse Width: 50 µs
Timer Accuracy: ±50 ppm
Minimum Trigger Interval: 10 µs
Maximum Capacitance Load: 50 µF
Maximum Resistance Load: 200 MΩ
Resistance Resolution: 6.5 digits
Connectivity: GP-IB, Ethernet, USB, Digital I/O







Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.

Please contact us for your Keysight (Agilent) B2912A REPAIR and/or Keysight (Agilent) B2912A Precision Source/Measure Unit CALIBRATION
