AEROFLEX-IFR 2398 CALIBRATION and AEROFLEX-IFR 2398 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 2398 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Spectrum Analyzer?
Shop for Comparable Products on our  used RF Spectrum Analyzer page or new RF Spectrum Analyzer page


   AEROFLEX-IFR 2398   Description / Specification:

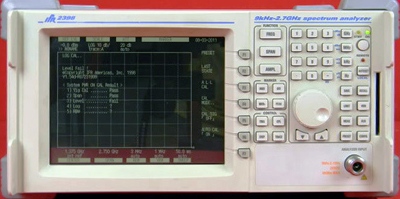

AEROFLEX-IFR 2398 2.7 GHz Spectrum Analyzer

The Aeroflex-IFR 2398 2.7 GHz Spectrum Analyzer with it's fully synthesized local oscillator system, the 2398 produces highly accurate frequency measurements. The standard 1 Hz frequency counter gives high resolution measurements of any signal above - 70 dBm. The 2398 offers a phase noise of - 90 dBc/Hz for determining the spectral purity of modules or systems. A standard AM and FM demodulator allows full testing and troubleshooting of a Wide range of wireless radio systems and repeaters. An intemal speaker and a headphone connector are provided. The 2398 provides an input signal range from + 20 dBm to - 105 dBm. This, combined with the AC coupled RF input, allows direct testing of RF amplifiers. Autoset is a one-button solution that allows for the instant viewing of an unknown signal. The 2398 will search for the highest signal level and tune the center frequency to that signal. Then the span and resolution bandwidth are set to an optimal state for the best view of the signal. Specifications. Frequency Tuning Range: 9 kHz to 2.7 GHz. Tuning Resolution. 1 Hz. Frequency Span Width: 100 Hz/div to 270 MHZ/div in 1, 2, 5 step selections (auto selected) plus ZERO Span, and FULL Span (9 kHz to 2.7 GHz). Manual selection of start, stop, and span. Span Accuracy: ± 3% of the indicated span width. Readout Accuracy: Span accuracy + frequency standard accuracy + 50% of RBW. Frequency Counter Resolution: 1 Hz, 10 Hz, 100 Hz and 1 kHz. Accuracy: ± (Reference frequency error x marker frequency + counter resolution ± 1 count). Sensitivity: <= -70 dBm. Amplitude Measurement Range: +20 to -105 dBm. Frequency Range: 9 kHz to 2.7 GHz. Displayed Average Noise Level: (1 MHz to 2.7 GHz, Resolution bandwidth of 300 Hz, 10 Hz video filter) -105 dBm. Sweep Rate (full screen): 50 ms to 1000 sec (in 1-2-5 sequence). Display: (7.4 in) Monochrome LCD.





Standard Calibration $595.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 2398. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Averaging
Averaging is a mathematical process to reduce the variation in a measurement by summing the data points from multiple measurements and dividing by the number of points summed.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your AEROFLEX-IFR 2398 CALIBRATION and/or AEROFLEX-IFR 2398 2.7 GHz Spectrum Analyzer REPAIR
