AEROFLEX-IFR 3412 CALIBRATION and AEROFLEX-IFR 3412 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 3412 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Signal Generator?
Shop for Comparable Products on our  used Signal Generator page


   AEROFLEX-IFR 3412   Description / Specification:

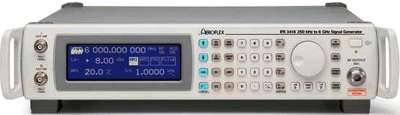

AEROFLEX-IFR 3412 Digital RF Signal Generator

The IFR 3412 is an Agile Signal Generator with high quality analog and vector modulation capabilities. Careful attention to the design of the modulators and the RF system ensures that this signal generator exhibits low levels of adjacent channel power, making it suitable for the most demanding amplifier linearity and receiver selectivity measurements. The use of Aeroflex fractional N synthesis techniques, combined with fast level control and an electronic attenuator, ensures the 3412 signal generator is both frequency and level agile for high speed ATE testing. The 3414 has excellent performance with typically 1.5 Hz residual FM at 1 GHz and a floor noise of typically better than -148 dBc / Hz. Carrier Frequency Range: 250 kHz - 2 GHz. Resolution: 1 Hz, accuracy as frequency standard The carrier output phase can be advanced or retarded in increments of 0.036°. RF Output Range (Max): -140 to +16 dBm (Electronic Attenuator), -140 to +19 dBm (Mechanical Attenuator), 0 to +20 dBm ( No Attenuator). Resolution: 0.01 dB. Harmonics: <-30 dBc, typically <-40 dBc for output levels <=+7 dBm. Attenuator Options. Option 001: No attenuator. Option 002: Mechanical attenuator. Option 003: Electronic attenuator. Option 005: ARB waveform generator (Not available with Option 008). Option 006: Pulse Modulation (Requires Option 003, not available with Option 009). Option 007: Rear panel outputs (RF Output only with Option 009). Option 008 ; Real Time Baseband (Not available with Option 005 or 009). Option 009: Differential I/Q output (Requires Option 005, not available with Option 006). Option 010: List Mode (Requires Option 003).





Standard Calibration $565.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 3412. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your AEROFLEX-IFR 3412 CALIBRATION and/or AEROFLEX-IFR 3412 Digital RF Signal Generator REPAIR
