AEROFLEX-IFR 3414 REPAIR and AEROFLEX-IFR 3414 CALIBRATION

Custom-Cal has a high success rate in the repair of the AEROFLEX-IFR 3414. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 3414 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Signal Generator?
Shop for Comparable Products on our  used Signal Generator page


   AEROFLEX-IFR 3414   Description / Specification:

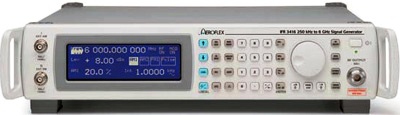

AEROFLEX-IFR 3414 Digital RF Signal Generator

The IFR 3414 is an Agile Signal Generator with high quality analog and vector modulation capabilities. Careful attention to the design of the modulators and the RF system ensures that this signal generator exhibits low levels of adjacent channel power, making it suitable for the most demanding amplifier linearity and receiver selectivity measurements. The use of Aeroflex fractional N synthesis techniques, combined with fast level control and an electronic attenuator, ensures the 3414 signal generator is both frequency and level agile for high speed ATE testing. The 3414 has excellent performance with typically 1.5 Hz residual FM at 1 GHz and a floor noise of typically better than -148 dBc / Hz. Carrier Frequency Range: 250 kHz - 4 GHz. Resolution: 1 Hz, accuracy as frequency standard The carrier output phase can be advanced or retarded in increments of 0.036°. RF Output Range (Max): -140 to +16 dBm (Electronic Attenuator), -140 to +19 dBm (Mechanical Attenuator), 0 to +20 dBm ( No Attenuator). Resolution: 0.01 dB. Harmonics: <-30 dBc, typically <-40 dBc for output levels <=+7 dBm. Attenuator Options. Option 001: No attenuator. Option 003: Electronic attenuator. Option 005: ARB waveform generator (Not available with Option 008). Option 006: Pulse Modulation (Requires Option 003, not available with Option 009). Option 007: Rear panel outputs (RF Output only with Option 009). Option 008 ; Real Time Baseband (Not available with Option 005 or 009). Option 009: Differential I/Q output (Requires Option 005, not available with Option 006). Option 010: List Mode (Requires Option 003).





Standard Calibration $565.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 3414. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.

Please contact us for your AEROFLEX-IFR 3414 REPAIR and/or AEROFLEX-IFR 3414 Digital RF Signal Generator CALIBRATION
