AEROFLEX-IFR 1200 SUPER S CALIBRATION and AEROFLEX-IFR 1200 SUPER S REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 1200 SUPER S Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Communication Analyzer?
Shop for Comparable Products on our  used Communication Analyzer page or new Communication Analyzer page


   AEROFLEX-IFR 1200 SUPER S   Description / Specification:

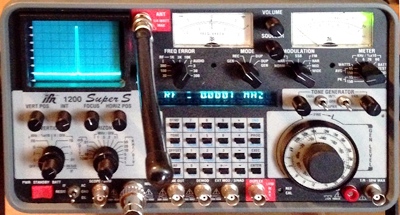

AEROFLEX-IFR 1200 SUPER S Communications Service Monitor

The IFR-Aeroflex 1200 Super S Communications Service Monitor is designed for land mobile professionals with demanding RF testing requirements, the 1200 Super S has a sensitive 2 µV triple conversion receiver capable of monitoring AM, FM and SSB carriers within the low band, VHF, UHF and high band ranges. The 1200 Super S supports DCS, DTMF and pulsed audio signaling formats. The 1200 Super S also meets RF measurement needs for: RF frequency error, RF power, Audio frequency error, CTCSS frequency and CTCSS modulation. In duplex mode the 1200 Super S is capable of simultaneously generating and receiving frequency offsets in 2.5 kHz steps. The duplex feature can be configured to operate in three modes: Testing using separate transmit and receive ports, Testing using one common transmit/receive port and “Off-the-air” duplex testing. Features. Analog meter and VFD (Vacuum Fluorescent Display) offer high visibility in all lighting conditions. Convenient service analyzer with duplex and simplex connectors. Standard internal spectrum analyzer to 1 GHz. Built-in 1 MHz oscilloscope. Specifications. RF Signal Generator Frequency Range: 250 kHz to 999.9999 MHz. Resolution: 100 Hz. Output (T/R) Range: -127 to -20 dBm. Resolution: 10 dB steps with 11 dB vernier. Accuracy: 2.5 dB, 3.0 dB @ -20 dB attenuator setting. Duplex Generator Frequency Range: 0 to ±49.9975 MHz from receive frequency. Resolution: 2.5 kHz. Internal Frequency Modulation Range: 0 to 50 kHz (1 kHz tone). Receiver Frequency Range: 250 kHz to 999.9999 MHz. Resolution: 100 Hz. Versions. -H, Hi Stability (0.05 ppm OCXO time base, tracking generator).





Standard Calibration $700.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 1200 SUPER S. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Decibel (dB)
A unit of measurement of optical power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

PDH
Plesiochronous Digital Hierarchy (PDH) is a transmission system for voice communication using plesiochronous synchronisation. The transmitter adds dummy information bits to allow multiple channels to be bit interleaved. The receiver discards these bits once the signals have been demultiplexed. PDH combines multiple 2 Mb/s (E1) channels in Europe and 1.544 Mb/s (DS1) channels in the US and Japan.

Spectral Width
Spectral Width is the wavelength interval over which the magnitude of all spectral components is equal to or greater than a specified fraction of the magnitude of the component having the maximum value. In optical communications applications, the usual method of specifying spectral width is the full width at half maximum. This is the same convention used in bandwidth, defined as the frequency range where power drops by less than half (at most -3 dB).

Please contact us for your AEROFLEX-IFR 1200 SUPER S CALIBRATION and/or AEROFLEX-IFR 1200 SUPER S Communications Service Monitor REPAIR
