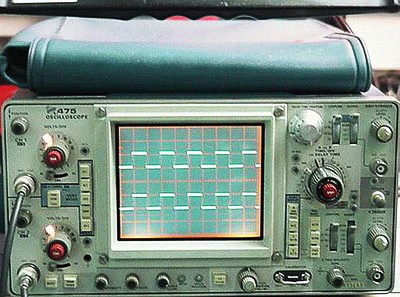

200 MHz Dual-Trace Oscilloscope. Bandwidth: Dc to 200 MHz, 1.75 ns. Deflection Factor: 2mV/div to 5V/div in 11 calibrated steps. Maximum Input Voltage: Dc Coupled; 250 V (dc + peak ac), 500 V (p-p ac at 1 kHz or less), Ac Coupled; 500 V (dc + peak ac), 500 V p-p (ac at 1 kHz or less). Time Base A and B: 0.01, us/div to 0.5 s/div in 24 calibrated steps (1-2-5 sequence). X10 MAG extends maximum sweep rate to 1 ns/div. Delay Time Range: 0 to 10X Delay Time/Div settings of 50 ns to 0.5 s (minimum delay time is 50 ns). Triggering: A Trigger Modes; Normal (sweep runs when triggered), Automatic (sweep free-runs in the absence of a triggering signal and for signals below 30 Hz), Single Sweep (sweep runs one time on the first triggering event after the reset selector is pressed). B Trigger Modes; B Runs After Delay Time (starts automatically at the end of the delay time), B Triggerable After Delay Time (runs when triggered), the B (delayed) sweep runs once, in each of these modes, following the A sweep delay time. X-Y Operation: Full-sensitivity X-Y(CH 1 Horiz, CH 2 Vert)-2 mV/ div to 5 V/div in 10 calibrated steps, accurate within 3% . Bandwidth is dc to at least 1 MHz. Phase difference between amplifiers is 1° or less from dc to 1 MHz. CRT: 5-inch rectangular tube; 8 x 10-cm display area.
|
