TEKTRONIX 11A33 CALIBRATION and TEKTRONIX 11A33 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 11A33 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 11A33   Description / Specification:

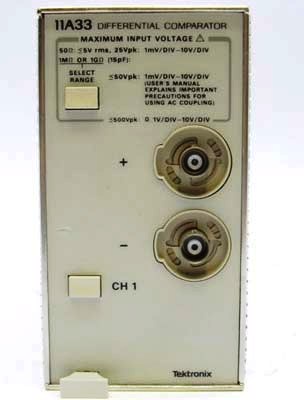

TEKTRONIX 11A33 Differential Comparator Amplifier Plug-in

Differential Comparator amplifier plug-in for the 11000 Series and DSA 600A Series mainframes. Bandwidth - DC to 150 MHz (DC to 120 MHz at 1 mV/div). Calibrated Deflection Factors - Coarse steps: 1 mV to 10 V/div in 1-2-5 sequence. Fine steps: Between coarse steps in 1% increments of next more-sensitive coarse step. VC Range - 1 to 99.5 mV/div: ±8 V; Resolution: 25 uV ; 100 mV to 0.995 V/div: ±80 V; Resolution: 250 uV 1 to 10 V/div: ±500 V; Resolution: 2.5 mV. Accuracy - delta Volts DC accuracy: With 11400: ±(0.9% +0 .01 div). With DSA 600: ±(1.0% +0.02 div). DC Balance, 1 to 99.5 mV/div: ±(0.5 mV +0.10 div). Differential DC Offset Accuracy, 1 to 99.5 mV/div: ±(0.25% + 0.7 mV). VC Accuracy, 1 to 99.5 mV/div (8 V range): ±(0.15% + 0.6 mV). For absolute DC accuracy of single point measurements using VC, add the VC Accuracy and DC balance terms. Differential DC Offset Range - 1 to 99.5 mV/div: ± 1 V; 100 mV to 0.995 V/div: ±10 V;1 to 10 V/div: ±100 V. Overdrive Recovery - Recovers to within 0.25% of overdriving signal within 40 ns; to within 2 mV in 100 us; to within 1 mV in 300 us. Conditions: 1 to 99 .5 mV/div; Overdriving signal steps to 0.0 V from ±8.0 V; Slew rate <=0.5 V/ns. Typical Noise (RMS) -1 to 1.99 mV: 0.24 div. 2 to 4.98 mV: 0.12 div. 5 to 9.95 mV/div: 0.05 div. 10 mV to 10 V/div: 0.03 div. Common-Mode Rejection Ratio - 1 to 99.5 mV/div: 10,000:1, DC to 1 MHz; 2000:1 at 5 MHz (8 V p-p signal). 100 mV to 0.995 V/div: 1000:1, DC to 1 MHz; 1001 at 10 to 20 MHz (30 V p-p signal). 1 to 10 V/div: 500:1, DC to 250 kHz (100 V p-p signal). Input Impedance - 50 ohm , 1 M-ohm in parallel with 15 pF, or 1 G-ohm in parallel with 15 pF from 1 to 99.5 mV/div. Max Input Voltage -1 M-ohm mode: 1 to 99.5 mV/div: 50 V (DC + peak AC); 0.1 to 10 V/div: 500 V (DC + peak AC). (At 1 to 99.5 mV/div, derate max input voltage at 20 dB/decade above 3 MHz; at 100 mV to 10 V/div, derate max input voltage at 20 dB/decade above 1 MHz). 50 ohm mode: The input impedance is switched to 1 M-ohm when input signal exceeds safe limits. Man





Standard Calibration $285.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 11A33. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your TEKTRONIX 11A33 CALIBRATION and/or TEKTRONIX 11A33 Differential Comparator Amplifier Plug-in REPAIR
