TEKTRONIX 11A52 CALIBRATION and TEKTRONIX 11A52 REPAIR


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 11A52 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our
 used Oscilloscope Plug In page


   TEKTRONIX 11A52   Description / Specification:

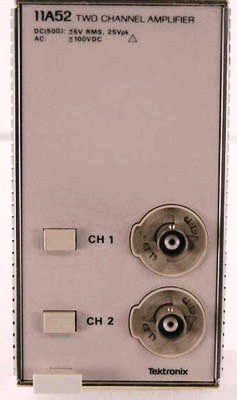

TEKTRONIX 11A52 2-Ch High-bandwidth Amplifier Plug-in

Two channel, high-bandwidth, amplifier plug-in for the 11000 Series and DSA 600A Series mainframes. Bandwidth (Max) - 600 MHz. Calibrated Deflection Factors - Coarse: 1 mV to 10 V/div in 1-2-5 steps. Fine: between coarse steps in 1 % increments of next more sensitive coarse step. Accuracy - delta Volts DC accuracy: With 11400: ±(0.8% +0.01 div). With DSA 600: ±(0.9% +0.02 div). DC Balance, 1 to 99.5 mV/div: ±(0.2 mV + 0.10 div). Offset Accuracy, 1 to 99.5 mV/div (± 1 V range): (0.15% + 0.4 mV). Offset Range - 1 to 99.5 mV/div: ± 1 V; Resolution: 25 uV. 100 mV to 0.995 V/div: ±10 V; Resolution: 250 uV. 1 to 10 V/div: ± 100 V; Resolution: 2.5 mV. Overdrive Recovery -1 to 99.5 mV/div: to within ±(0.2% +0.1 div) within 20 ns from ±2 V step. Typical Noise (RMS) -1 to 1.99 mV/div: 0.087 div. 2 to 4.98 mV/div: 0.04 div. 5 to 9.95 mV/div: 0.02 div. 10 mV to 10 V/div: 0.012 div. Input Impedance - 50 ohm ±0.5%; VSWR: < 1.3:1 DC to 500 MHz. Input Coupling Modes - AC, DC, and OFF. AC Coupled Low Frequency ; -3 dB point; 1 kHz or less from 50 ohm source. Max Input Voltage - DC Coupled: 25 V pk or 5 Vrms. AC Coupled: ± 100 VDC additional. Input coupling is set to off when coupled signal exceeds safe limits. Manual reset by selecting either AC or DC coupling.





Standard Calibration $330.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 11A52. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.


Please contact us for your TEKTRONIX 11A52 CALIBRATION and/or TEKTRONIX 11A52 2-Ch High-bandwidth Amplifier Plug-in REPAIR
