TEKTRONIX 11A81 CALIBRATION and TEKTRONIX 11A81 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 11A81 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 11A81   Description / Specification:

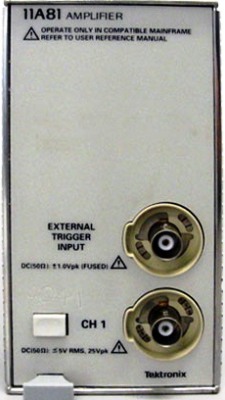

TEKTRONIX 11A81 Single Channel High-bandwidth Presampler Plug-in

Single channel, high-bandwidth, presampler plug-in designed specifically for the 11403A Digitizing Oscilloscope and the CSA 404 Communications Signal Analyzer. Characteristics: Bandwidth - 3 GHz typical (calculated from rise time using the formula BW = 0.38/t,). Risetime - <= 130 ps. Deflection Factor -10 mV to 1 V/div in 1-2-5 sequence. Accuracy - delta.V: ±(1.0 + 0.01 div.); Offset: ±(0.6% + 0.01 div. ); DC Balance: ±0.1 div. Offset Range - ±50 divisions. Resolution: Coarse - 0.25 div; Fine - 0.025 div. Overdrive Recovery - At 10 and 20 mV/div: to within ±(2.0% +0.1 div) within 10 ns from ± 1 V step. Typical Displayed Noise (RMS) - 0.025 div from 10 mV/div to 1 V/div. Input Impedance - 50 ohm ± 1. 0%; VSWR <= 1.45:1 at 10 mV/div, DC to 2 GHz; VSWR <= 1.25:1 at 20 mV/div to 1 V/div, DC to 2 GHz. Disconnect Threshold - DC signal: ±(6 V ± 1 V); AC signal: 5 Vrms typical (DC to 100 MHz). Input Coupling Modes - DC and OFF. Maximum Input Voltage - 5 Vrms (0 .5 W) or 0.25 watt-second pulses not exceeding 25 V peak. External Trigger - Range: ± 1 V. Resolution: Fine: ±2 mV/step; Coarse: ±20 mV/step. Accuracy: ±5% of trigger level range. Sensitivity: 40 mV p-p from DC to 200 MHz; increasing to 150 mV p-p at 800 MHz; increasing to 200 mV p-p at 2 GHz. Maximum Safe Input level: ± 1 V. Internal Trigger - Sensitivity: 2.0 div p-p from DC to 625 MHz, typically increasing to 4.5 div p-p at 1 GHz





Standard Calibration $330.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 11A81. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.

Please contact us for your TEKTRONIX 11A81 CALIBRATION and/or TEKTRONIX 11A81 Single Channel High-bandwidth Presampler Plug-in REPAIR
