TEKTRONIX DPO2012 CALIBRATION and TEKTRONIX DPO2012 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX DPO2012 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX DPO2012   Description / Specification:

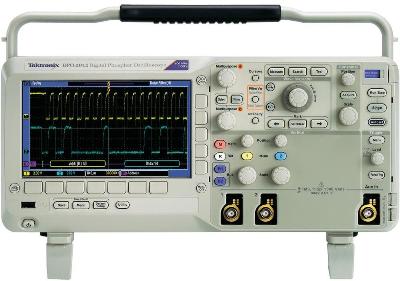

TEKTRONIX DPO2012 2 Ch 100 MHz Digital Phosphor Oscilloscope

Tektronix DPO2012 100 MHz digital phosphor oscilloscope, 2 channel. Maximum Sample Rate: 1.0 GS/s. Calculated Rise Time: 3.5 ns. Hardware Bandwidth Limits: 20 MHz. Input Coupling: AC, DC, GND. Input Impedance: 1 M-Ohm ±2%, 11.5 pF ±2 pF. Input Sensitivity Range: 2 mV/div to 5 V/div. Vertical Resolution 8 bits. Maximum Input Voltage, 1 M-Ohm: 300 VRMS with peaks <= ±450 V. DC Gain Accuracy (with offset set to 0 V): ±3% for 10 mV/div to 5 V/div, ±4% for 2 mV/div to 5 mV/div. Horizontal System Analog Channels; Maximum Sample Rate (all channels): 1 GS/s. Maximum Record Length (all channels): 1 Mpoints. Maximum Duration of Time Captured at Highest Sample Rate (all channels): 1 ms. Time-base Range (s/div) 4 ns to 100 s. Time-base Delay Time Range: -10 divisions to 5000 s. Channel-to-Channel Deskew Range: ±100 ns. Time-base Accuracy: ±25 ppm. Display Type: 7 in. (180 mm) liquid crystal TFT color display.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX DPO2012. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Available Gain
Available Gain is the ratio, at a specific frequency, of power available from the output to the power in from the source.

Decibel (dB)
A unit of measurement of power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

Mismatch Uncertainty
Mismatch Uncertainty is caused by re-reflections between one device (the source) and the device that follows it (the load).

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your TEKTRONIX DPO2012 CALIBRATION and/or TEKTRONIX DPO2012 2 Ch 100 MHz Digital Phosphor Oscilloscope REPAIR
