TEKTRONIX MSO3014 CALIBRATION and TEKTRONIX MSO3014 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX MSO3014 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX MSO3014   Description / Specification:   Spec Sheet

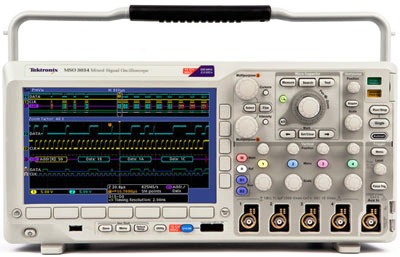

TEKTRONIX MSO3014 4+16 Ch 100 MHz Mixed Signal Oscilloscope

100 MHz Mixed Signal Oscilloscope, 4 +16 channel. Maximum Sample Rate: 1.0 GS/s. Calculated Rise Time: 3.5 ns. Hardware Bandwidth Limits: 20 MHz. Input Coupling: AC, DC, GND. Input Impedance: 1 M-Ohm ±1%, 75 ohm ±1%, 50 ohm ±1%. Input Sensitivity Range 1 M-ohm: 1 mV/div to 10 V/div. Input Sensitivity Range, 75 ohm, 50 ohm: 1 mV/div to 1 V/div. Vertical Resolution: 8 bits(11 bits with Hi Res). Maximum Input Voltage, 1 M-Ohm: 300 VRMS with peaks <= ±450 V. DC Gain Accuracy: ±1.5% for 5 mV/div and above, ±2.0% for 2 mV/div, ±2.5% for 1 mV/div. Vertical System Digital Channels; Input Channels: 16 Digital (D15 to D0). Thresholds: Threshold per set of 8 channels. Threshold Selections: TTL, CMOS, ECL, PECL, User Defined. User-defined Threshold Range: -15 V to +25 V. Maximum Input Voltage: -20 V to +30 V. Threshold Accuracy: ±(100 mV +3% of threshold setting). Maximum Input Dynamic Range: 50 Vpk-pk (threshold setting dependent). Minimum Voltage Swing: 500 mVpk-pk. Input Impedance: 101 k ohm. Probe Loading: 8 pF. Vertical Resolution: 1 bit. Horizontal System Digital Channels; Maximum Sample Rate (Main, all channels): 500 MS/s (2 ns resolution). Maximum Record Length (Main, all channels): 5 Mpoints. Maximum Sample Rate (MagniVu, all channels): 8.25 GS/s (121.2 ps resolution). Maximum Record Length (MagniVu, all channels): 10 kpoints centered on the trigger. Minimum Detectable Pulse Width: 2.0 ns. Channel-to-Channel Skew: 500 ps typical. Horizontal System Analog Channels; Maximum Sample Rate (Main, all channels): 500 MS/s (2 ns resolution). Maximum Record Length (Main, all channels): 5 Mpoints. Maximum Duration of Time Captured at Highest Sample Rate (all channels): 2 ms. Time-base Range (s/div): 1 ns to 1000 s. Time-base Delay Time Range: -10 divisions to 5000 s. Channel-to-Channel Deskew Range: ±100 ns. Time-base Accuracy: ±10 ppm over any >=1 ms interval. Display Type: 9 in. (228.6 mm) wide format liquid crystal TFT color display.





Standard Calibration $190.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX MSO3014. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your TEKTRONIX MSO3014 CALIBRATION and/or TEKTRONIX MSO3014 4+16 Ch 100 MHz Mixed Signal Oscilloscope REPAIR
