TEKTRONIX DPO3014 CALIBRATION and TEKTRONIX DPO3014 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX DPO3014 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX DPO3014   Description / Specification:   Spec Sheet

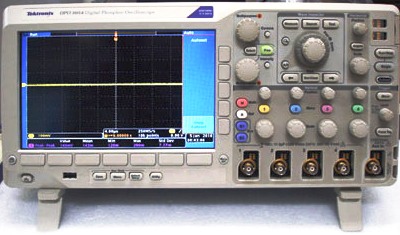

TEKTRONIX DPO3014 4 Ch 100 MHz Digital Phosphor Oscilloscope

100 MHz digital phosphor oscilloscope, 4 channel. Maximum Sample Rate: 1.0 GS/s. Calculated Rise Time: 3.5 ns. Hardware Bandwidth Limits: 20 MHz. Input Coupling: AC, DC, GND. Input Impedance: 1 M-Ohm ±1%, 75 ohm ±1%, 50 ohm ±1%. Input Sensitivity Range 1 M-ohm: 1 mV/div to 10 V/div. Input Sensitivity Range, 75 ohm, 50 ohm: 1 mV/div to 1 V/div. Vertical Resolution: 8 bits(11 bits with Hi Res). Maximum Input Voltage, 1 M-Ohm: 300 VRMS with peaks <= ±450 V. DC Gain Accuracy: ±1.5% for 5 mV/div and above, ±2.0% for 2 mV/div, ±2.5% for 1 mV/div. Horizontal System Analog Channels; Maximum Sample Rate (Main, all channels): 500 MS/s (2 ns resolution). Maximum Record Length (Main, all channels): 5 Mpoints. Maximum Duration of Time Captured at Highest Sample Rate (all channels): 2 ms. Time-base Range (s/div): 1 ns to 1000 s. Time-base Delay Time Range: -10 divisions to 5000 s. Channel-to-Channel Deskew Range: ±100 ns. Time-base Accuracy: ±10 ppm over any >=1 ms interval. Display Type: 9 in. (228.6 mm) wide format liquid crystal TFT color display.





Standard Calibration $190.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX DPO3014. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.
