TEKTRONIX DPO3032 CALIBRATION and TEKTRONIX DPO3032 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX DPO3032 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX DPO3032   Description / Specification:   Spec Sheet

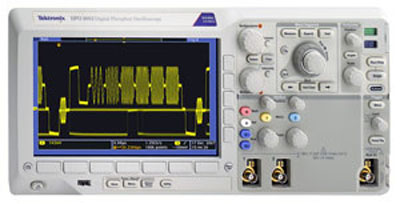

TEKTRONIX DPO3032 2 Ch 300 MHz Digital Phosphor Oscilloscope

300 MHz digital phosphor oscilloscope, 2 channel. Maximum Sample Rate: 1.0 GS/s. Calculated Rise Time: 1.17 ns. Hardware Bandwidth Limits: 20, 150 MHz. Input Coupling: AC, DC, GND. Input Impedance: 1 M-Ohm ±1%, 75 ohm ±1%, 50 ohm ±1%. Input Sensitivity Range 1 M-ohm: 1 mV/div to 10 V/div. Input Sensitivity Range, 75 ohm, 50 ohm: 1 mV/div to 1 V/div. Vertical Resolution: 8 bits(11 bits with Hi Res). Maximum Input Voltage, 1 M-Ohm: 300 VRMS with peaks <= ±450 V. DC Gain Accuracy: ±1.5% for 5 mV/div and above, ±2.0% for 2 mV/div, ±2.5% for 1 mV/div. Horizontal System Analog Channels; Maximum Sample Rate (Main, all channels): 500 MS/s (2 ns resolution). Maximum Record Length (Main, all channels): 5 Mpoints. Maximum Duration of Time Captured at Highest Sample Rate (all channels): 2 ms. Time-base Range (s/div): 1 ns to 1000 s. Time-base Delay Time Range: -10 divisions to 5000 s. Channel-to-Channel Deskew Range: ±100 ns. Time-base Accuracy: ±10 ppm over any >=1 ms interval. Display Type: 9 in. (228.6 mm) wide format liquid crystal TFT color display.





Standard Calibration $190.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX DPO3032. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Averaging
Averaging is a mathematical process to reduce the variation in a measurement by summing the data points from multiple measurements and dividing by the number of points summed.

Fall Time
Fall time is the time required for the amplitude of a pulse to decrease (fall) from a specified value (usually 90 percent of the peak value exclusive of overshoot or undershoot) to another specified value (usually 10 percent of the maximum value exclusive of overshoot or undershoot).

Noise Density
Noise Density is the amount of noise within a defined bandwidth, usually normalized to 1 Hz.

Resolution Bandwidth (RBW)
Resolution Bandwidth (RBW) is the minimum bandwidth over which you can separate two signals and still see them.

Please contact us for your TEKTRONIX DPO3032 CALIBRATION and/or TEKTRONIX DPO3032 2 Ch 300 MHz Digital Phosphor Oscilloscope REPAIR
