TEKTRONIX 5A22N CALIBRATION and TEKTRONIX 5A22N REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 5A22N Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 5A22N   Description / Specification:

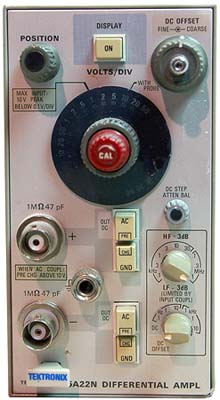

TEKTRONIX 5A22N Differential Amplifier Plug-in

Differential plug-in amplifier for use in any 5000 Series mainframe. Bandwidth - HF -3 dB Point: Selectable in 9 steps (1·3 sequence) from 100 Hz to 1 MHz. 100 Hz to 0.3 MHz, accuracy is within 20% of selected frequency; at 1 MHz, bandwidth is down 3 dB or less. LF -3 dB Point: Selectable in 6 steps (1-10 sequence) from 0.1 Hz to 10 kHz accuracy is within 20% of selected frequency. Ac Coupled: 2 Hz or less. Deflection Factor - Calibrated: 10 uV/div to 5 V/div in a 1-2-5 sequence. Accuracy is within 3%. Uncalibrated: Variable is continuous between steps to at least 12.5 V/div. Input R and C - 1 M-ohm within 0.15% paralleled by ~47 pF. Maximum Input Gate Current - 200 pA or less. Displayed Noise - 20 uV at maximum bandwidth, source resistance 25 ohm or less, measured tangentially. Overdrive Recovery - 10 us or less to recover within 99.5% of reference level after removal of a test signal applied for 1 s. Signal amplitude not to exceed common·mode signal range. Common-Mode Rejection Ratio - Ac Coupled : 10 uV/div to 0.5 mV/div, at least 20,000:1 at 5 kHz and above, decreasing to 400:1 at 10 Hz. Dc Coupled: At least 100,000:1, dc to 30 kHz from 10 uV/div to 100 uV/div with up to 20 V p-p sinewave, decreasing by <20 dB/decade on sensitivity ranges up to 50 mV/div. From 100 mV/div to 5 V/div, CMRR is at least 400:1 with up to 100 V p-p sinewave.





Standard Calibration $405.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 5A22N. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your TEKTRONIX 5A22N CALIBRATION and/or TEKTRONIX 5A22N Differential Amplifier Plug-in REPAIR
