TEKTRONIX 5A38 CALIBRATION and TEKTRONIX 5A38 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 5A38 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 5A38   Description / Specification:

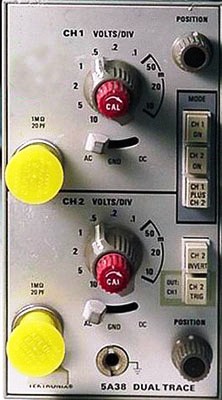

TEKTRONIX 5A38 Dual Trace Amplifier Plug-in

Dual-trace plug-in amplifier for use only in the 5223 and the 5400 Series mainframes. Bandwidth - Dc Coupled: To > 35 MHz, Lower End Response, Ac Coupled: < 10 Hz. Deflection Factors - Calibrated: 10 mV/div to 10 V/div in a 1-2-5 sequence, Accuracy: is < 3% from 15°C to 35°C, 4% from 0°C to +50°C, Uncalibrated: Variable is continuous between steps to at least 25 V/div. Input R and C - 1 M-ohm paralleled by 20 pF. Maximum Input Voltage - Dc Coupled: 250 V (dc + peak ac), Ac Coupled: 500 V (dc + peak ac), Ac Component: 500 V p-p maximum at 1 kHz or less. Stability - < 0,3 mV vertical shift in anyone minute after one hour warm-up, ambient temperature and line voltage held constant. < 0,2 mV/°C vertical shift with line voltage held constant. Display Modes - Channel 1 only, Channel 2 only (normal or inverted), Dual Trace, and Added, Alternated or chopped operation determined by time base plug-in, Internal trigger selectable from Channel 1 or Channel 2, Rise Time - < 10 ns. Channel Isolation - >50:1 to 35 MHz with both traces displayed.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 5A38. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your TEKTRONIX 5A38 CALIBRATION and/or TEKTRONIX 5A38 Dual Trace Amplifier Plug-in REPAIR
