TEKTRONIX 5B10N CALIBRATION and TEKTRONIX 5B10N REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 5B10N Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 5B10N   Description / Specification:

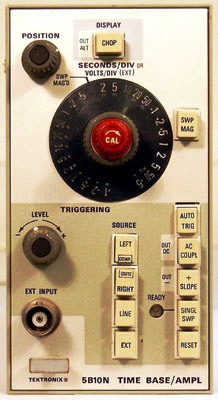

TEKTRONIX 5B10N Time Base Amplifier Plug-in

Tektronix 5B10N Time Base plug-in amplifier for use in any 5000 Series mainframe. Sweep Rates - Calibrated: 1 us/div to 5 s/div in 21 steps (1-2-5 sequence). X10 Magnifier extends displayed sweep time/div to 100 ns. Uncalibrated: Continuously variable between steps and to 12.5 s/div. B Sweep: 0.2 us/div to 0.5 s/div in 20 calibrated steps. Sweep Accuracy - Unmagnified: Within 3% from 1 us/div to 1 s/div and within 4% at 2 s/div and 5 s/div. Add 1% for magnified sweep operation. B Sweep: Within 3% from 1 us/div to 0.1 s/div. Within 4% at 0.2 us/div, 0.5 us/div, 0.2 s/div, and 0.5 s/div. External Trigger Input - Maximum Input: 350 V (dc + peak ac). Input R and C: 1 M-ohm within 2% paralleled by ~70 pF. Trigger Level Voltage Range: +5 V to -5 V. Deflection Factor - Calibrated: 50 mV/div and 500 mV/div. Accuracy is within 3%. X10 variable extends range to at least 5 V/div. Bandwidth - Dc Coupled: Dc to at least 1 MHz. Ac Coupled: 50 Hz or less to at least 1 MHz. Input R and C - 1 M-ohm within 2% paralleled by ~70pF. Maximum Input Voltage - 350 V (dc + peak ac).





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 5B10N. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your TEKTRONIX 5B10N CALIBRATION and/or TEKTRONIX 5B10N Time Base Amplifier Plug-in REPAIR
