TEKTRONIX 7A16P CALIBRATION and TEKTRONIX 7A16P REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 7A16P Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 7A16P   Description / Specification:

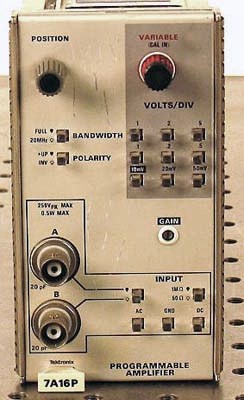

TEKTRONIX 7A16P Programmable Amplifier Plug-in

Tektronix 7A16P Programmable amplifier designed for use in 7000 Series Programmable Digitizers. It can be set under program control via a programmable mainframe and the IEEE 488 bus. Bandwidth - 225 MHz. plug-in only. 200 MHz in the 7912AD. Bandwidth may be limited to 20 MHz ±3 MHz by bandwidth limit switch. Ac Coupled Lower Bandwidth - 10Hz or less. Step Response - 1.6 ns rise time, plug-in only. Deflection Factor- 10 mV/div to 5 V/div, 9 steps in a 1-2-5 sequence. Accuracy is ±2% of indicated deflection factor with GAIN adjusted at 10 mV/ div. Uncalibrated VARIABLE is continuous between steps and extends selected deflection factor to at least 2.5 times the calibrated value. Inputs - Selectable A or B signal input connectors. Max Input Voltage - 1 M-Ohm, dc coupled: 250 V (dc + peak ac), ac component 500 V p-p max, 1 kHz or less. 1 M-Ohm, ac coupled: 500 V (dc + peak ac) , ac component 500 V p-p max, 1 kHz or less. 50 ohm: 0.5 watts max.





Standard Calibration $330.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 7A16P. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.
