TEKTRONIX 7A26 CALIBRATION and TEKTRONIX 7A26 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 7A26 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 7A26   Description / Specification:

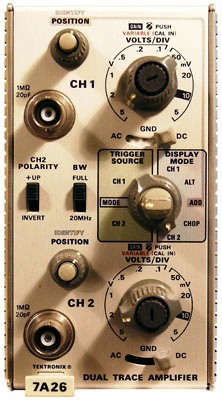

TEKTRONIX 7A26 Dual-trace Amplifier Plug-in

The Tektronix 7A26 is a dual-trace amplifier that provides a bandwidth of 200 MHz in the 7900- and 7100-Series mainframes. Bandwidth is constant over the entire range of deflection sensitivities of 5 mV to 5 V/div. Bandwidth may be limited to 20 MHz to reduce displayed noise in lower-frequency applications. Is a basic building block for 3- or 4-trace operation. It features constant bandwidth for all deflection factors, 5 operating modes (CH 1, CH 2, ALT, CHOP, ADD), trigger source selection (CH 1, CH 2, MODE), and color-keyed control groupings. Polarity of Channel 2 is selectable. Bandwidth may be set at FULL or limited to 20 MHz for low-frequency applications. Deflection Factor - 5 mV/div to 5 V/div in 10 calibrated steps (1-2-5 sequence). Accuracy is within 2% with gain adjusted at 10 mV/div. Uncalibrated VARIABLE is continuous between steps to at least 12.5 V/div. Maximum Input Voltage - Dc-coupled: 250 V (dc + peak ac); ac component 500 V p-p maximum, 1 kHz or less. Ac-coupled: 500 V (dc + peak ac); ac component 500 V p-p maximum, 1 kHz or less. Common Mode Rejection Ratio (ADD, Ch 1 Invert) - At least 10:1. dc to 50 MHz.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 7A26. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.
