TEKTRONIX DSA70804 CALIBRATION and TEKTRONIX DSA70804 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX DSA70804 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX DSA70804   Description / Specification:   Spec Sheet

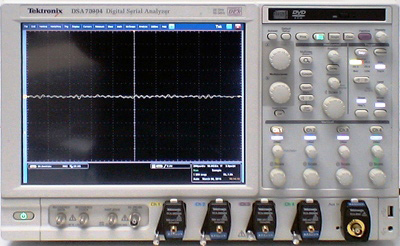

TEKTRONIX DSA70804 8 GHz Real-time Digital Serial Analyzer

The Tektronix DSA70804 8 GHz Real-time Digital Serial Analyzer is based on the same advanced technology as the DPO70000 real-time digital phosphor oscilloscopes. The DSA70804 is specifically targeted to address the challenging high-speed serial design issues faced by designers, by encapsulating extended high-speed serial data domain expertise. High sample rate on all channels capture more signal details (transients, imperfections, fast edges), 25 GS/s on all four channels, bandwidth enhancement as well as best low jitter noise floor and vertical accuracy for very accurate measurements. The DSA70804 analyzer can deliver high waveform capture rate at more than 300,000 waveforms per second. Specifications. Input Channels: 4. Bandwidth (user selectable DSP enhance): 8 GHz. Rise Time 10% to 90% (typical): 47 ps. Rise Time 20% to 80% (typical): 33 ps. Hardware Analog Bandwidth (-3 dB): 8 GHz (typical). DC Gain Accuracy: ±2% (of reading). Input Coupling: DC (50 ohm), GND. Input Impedance: 50 ohm ±1.5%, 1 Mohm with TCA-1MEG adapter. Input Sensitivity 8 GHz and below: 10 mV/div to 1 V/div (100 mV to 10 V full scale). Vertical Resolution: 8 bit (11 bit with averaging). Time Base Range: 20 ps/div to 1000 s/div. Time Base Delay Time Range: -5.0 ks to 1.0 ks. Trigger Jitter (RMS): 1 psRMS (typical) with enhanced triggering OFF, <100 fsRMS with enhanced triggering ON. Time Base Accuracy: ±1.5 ppm initial accuracy, aging <1 ppm per year. Sample Rates Real-time mode 1, 2, 3, or 4 channel (max): 25 GS/s. Maximum Record Length per Channel With Standard Configuration: 20 M on all four channels. Maximum Duration at Highest Real-Time Resolution: 40 ps (25 GS/s). Options. 5XL - 50 MSamples/ch. 10XL - 100 MSamples/ch. DDRA - DDR Memory Bus Analysis. DJA - DPOJET Jitter and Eye Diagram Analysis. ET3 - Ethernet Compliance Test Software. USB - USB 2.0 Compliance Test Software only. PWR - Power Measurement and Analysis Software. HT3 - HDMI Compliance Test Software. DSPT - DisplayPort Compliance Test Solution. DVI - DVI Compliance Test Solution. PCE - PCI Express Compliance Module for RT-Eye Serial Data Compliance and Analysis Software. SST - SATA and SAS Analysis Software Module for RT-Eye Serial Data Compliance and Analysis Software. FBD - FB-DIMM Compliance Module for RT-Eye Serial Data Compliance and Analysis Software. IBA - InfiniBand Compliance Module for RT-Eye Serial Data Compliance and Analysis Software. UWB - Ultra-Wideband Spectral Analysis. UWBE - Ultra-Wideband Spectral Analysis Essentials. SVE - SignalVu Essentials, Vector Signal Analysis Software. SVP - Advanced Signal Analysis (including pulse measurements), Requires option SVE. SVM - General Purpose Modulation Analysis, Requires option SVE. SLE - Serial Data Link Analysis Essentials (no Equalization). SLA - Serial Data Link Analysis Advanced (with Equalization).





Standard Calibration $320.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX DSA70804. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.

Please contact us for your TEKTRONIX DSA70804 CALIBRATION and/or TEKTRONIX DSA70804 8 GHz Real-time Digital Serial Analyzer REPAIR
