TEKTRONIX P6209 CALIBRATION and TEKTRONIX P6209 REPAIR
The TEKTRONIX P6209 is currently in stock and available for purchase on our  Sales Page
It is also available for immediate rental.
A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX P6209 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Accessory?
Shop for Comparable Products on our  used Oscilloscope Accessory page


   TEKTRONIX P6209   Description / Specification:

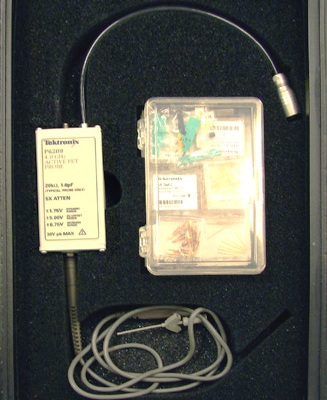

TEKTRONIX P6209 Active Probe

The Tektronix P6209 is a 4 GHz (probe only), 5X active FET probe with 1 pF input capacitance. The probe is designed primarily for use with sampling oscilloscopes, such as the CSA/TDS8000. The P6209 has a low input capacitance and high input resistance, which minimize circuit loading over a wide bandwidth range. The small profile and low-mass head of the P6209 make manual probing of crowded circuits fast and easy. The accessory tips and adapters enable the P6209 to be used on a wide variety of circuit architectures. The Tektronix P6209 is powered through a TEKPROBE SMA interface between the probe compensation box and the oscilloscope. Specifications. DC Gain Accuracy (probe only): 0.2 ±2% (excludes offset error). Rise Time (small signal, probe only): <=120 ps (<= 250 mV, 20--30° C). Delay Time: 5.95 ns ±0.2 ns (includes SMA output cable). System Noise: 300 uV rms or less at output of probe with probe tip grounded. Bandwidth, (probe only): 4 GHz. Linear Input Dynamic Range: -2.00 V to +2.00 V. (Equivalent to --0.40 V to +0.40 V at the output of the probe.). Linearity: ±0.1% over a dynamic range of --1.75 V to +1.75 V (±3.5 mV). Input Resistance: 20 kohm at DC. Input Capacitance: 0.85 pF @100 MHz. Offset Range: --5.0 V to +5.0 V. DC Offset Drift: 150 uV/°C or less at output of probe. DC Offset Scale Accuracy (gain of offset signal path): ±2.0% (of 5X actual probe gain).
