TEKTRONIX TAS 455 CALIBRATION and TEKTRONIX TAS 455 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TAS 455 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TAS 455 (TAS455)   Description / Specification:

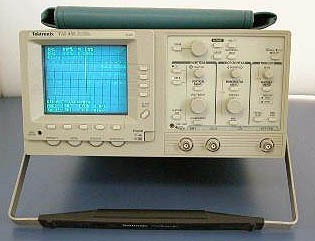

TEKTRONIX TAS 455 2 Ch 60 MHz Analog Oscilloscope

60 MHz Analog Oscilloscope. Dual channel. Rise Time: <= 5.8 ns. Defection Factor: 2 mV/div to 5 V/div, continuously variable between V/div settings. Deflection Factor Basic Accuracy: ±2%. Bandwidth Limit: 20 MHz. Input Coupling: AC, DC, GND. Max Input Voltage: 400 V (DC + peak AC); 800 Vp-p AC at <= 10 kHz. Input R and C: 1 M-Ohm ±1% in parallel with 20 pF ±2.0 pF. Channel Isolation: >= 50 dB at 10 MHz, >= 35 dB at 100 MHz. Vertical Modes: CH 1, CH 2; ADD, INVERT, ALT, or CHOP. AC-Coupled Lower -3 dB Point: <= 10 Hz with a 1X probe. The AC-coupled lower frequency limits are reduced by a factor of 10 when 10X, passive probes are used. Common Mode Rejection Ratio: >= 10:1. Main Sweep Time Base Range: 0.5 s/div to 20 ns/div (to 2 ns/div with X10 magnification). Delayed Sweep Time Base Range: 5 ms/div to 20 ns/div (to 2 ns/div with X10 magnification). Time Base Accuracy: ±2%, ±3% magnified. Delay Jitter: 25000 to 1 for sweep speeds <1 ms/div. 10,000 for all other sweep speeds. Triggering Main Mode Selections: AUTO LEVEL, (with auto baseline), AUTO, NORM, TV LINE, TV FIELD (both, odd and even), SGL, SEQ. A and B Trigger Coupling: DC, HF Reject, Noise Reject, LF Reject and AC for both Main and Delayed. Trigger Sensitivity - DC: 0.30 division from DC to 25 MHz, increasing linearly to 1 div at 150 MHz.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TAS 455. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Available Gain
Available Gain is the ratio, at a specific frequency, of power available from the output to the power in from the source.

Decibel (dB)
A unit of measurement of power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

Mismatch Uncertainty
Mismatch Uncertainty is caused by re-reflections between one device (the source) and the device that follows it (the load).

Pulse Power
Pulse Power, the energy transfer rate is averaged over the pulse width. Pulse width is considered to be the time between the 50 percent risetime/falltime amplitude points. Pulse power averages out any aberrations in the pulse envelope such as overshoot or ringing.

Please contact us for your TEKTRONIX TAS 455 CALIBRATION and/or TEKTRONIX TAS 455 2 Ch 60 MHz Analog Oscilloscope REPAIR
