TEKTRONIX TDS 3054B CALIBRATION and TEKTRONIX TDS 3054B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS 3054B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS 3054B (TDS3054B)   Description / Specification:

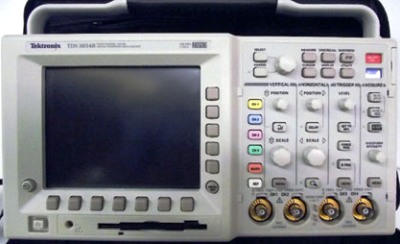

TEKTRONIX TDS 3054B 4 Ch 500 MHz Digital Phosphor Oscilloscope

500 MHz, Digital Phosphor Oscilloscope, Four Channel. Sample Rate on Each Channel: 5 GS/s. Maximum record length: 10 K points on all models. Vertical resolution: 9 Bits on all models. Vertical sensitivity (/div): 1 mV – 10 V on all models. Vertical accuracy: ±2% on all models. Max input voltage (1 M-Ohm): 150 VRMS CAT I on all models (300 V CAT II with standard 10X probe). Position range: ± 5 div on all models. BW limit: 20, 150 MHz. Input coupling: AC, DC, GND. Input impedance selections: 1 M-Ohm in parallel with 13 pF or 50 ohm. Time base Range: 1 ns – 10 s/div. Time base Accuracy: 20 ppm. Trigger System; Main Trigger Modes: Auto (supports Roll Mode for 40 ms/div and slower), Normal. B Trigger: Trigger after time or events. Trigger After Time Range: 13.2 ns to 50 s. Trigger After Events Range: 1 to 9,999,999 events. External Trigger Input: >1 M- Ohm in parallel with 17 pF; Max input voltage is 150 VRMS. Trigger Types; Edge: Conventional level-driven trigger. Positive or negative slope on any channel. Coupling selections: DC, noise reject, HF reject, LF reject. Video: Trigger on all lines, odd, even or all fields. With TDS3VID or TDS3SDI, trigger on individual lines and on analog HDTV formats (1080i, 1080p, 720p, 480p). Display (VGA) Color active matrix LCD





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS 3054B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a contiguous set of frequencies within which a component, link or network will operate.

Frequency Span
Frequency Span specifies the range between the start and stop frequencies, also referred to as bandwidth

Noise Figure
Noise Figure the ratio of the signal-to-noise power ratio at the input to the signal-to-noise power ratio at the output.

Ringing
Ringing is an unwanted oscillation of a voltage or current.

Please contact us for your TEKTRONIX TDS 3054B CALIBRATION and/or TEKTRONIX TDS 3054B 4 Ch 500 MHz Digital Phosphor Oscilloscope REPAIR
