TEKTRONIX TDS380 CALIBRATION and TEKTRONIX TDS380 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS380 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS380   Description / Specification:

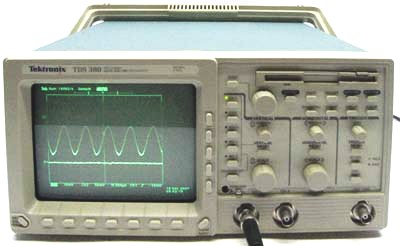

TEKTRONIX TDS380 2 Ch Analog Oscilloscope

The Tektronix TDS 380 is a 400 MHz BW, 2 Channel, Analog Oscilloscope. It has 21 automatic waveform measurements, and four acquisition modes. Sample mode provides real-time sampling at the highest throughput rate. At slower sweep speeds, Peak Detect indicates if there is higher frequency information buried in a waveform, warning the user to increase the sweep speed to avoid aliasing. Envelope mode, by including the highest and lowest points over many acquisitions, shows variations in the signal over time. From several acquisitions, Average mode calculates an average value for each waveform point, reducing apparent noise in repetitive signals. The user-friendly TDS380 interface retains traditional analog simplicity yet gives quick access to the wide range of digital functions. Frequently used functions, like position and trigger level, are controlled directly with buttons and knobs; secondary functions are menu-driven. Option 14, the communications option, includes GPIB and RS-232-C interfaces, VGA monitor output, and a Centronics-type parallel printer port. Characteristics. Bandwidth: 400 MHz. Sample Rate: 2 GS/s on each channel. Channels: Two identical channels, each with invert function. Sensitivity: 2 mV to 10 V/div (with calibrated fine adjust). Position Range: ±5 divisions. DC Gain Accuracy: ±2%. Vertical Resolution: 8-Bits (256 levels over 10.24 vertical divisions). Acquisition Peak Detect: High frequency and random glitch capture; Captures glitches as narrow as 10 ns using acquisition hardware at all time/div settings between 25 us/div and 5 s/div (inclusive). Time/Division Range: 1 ns to 5 s/div. Record Length: 1000 sample points per channel. Horizontal Accuracy: ± 0.01 %. Roll Mode: 0.1 s/div and slower when Auto Trigger Mode is selected. Trigger Types: Edge, Video. Trigger Modes: Auto, Normal. Trigger Inputs: CH1 , CH2, Line, External. Video; Type Trigger Formats and Field Rates: Triggers on Field 1, Field 2, Any Field (noninterlaced systems) , or Lines; from Sync-negative composite video. Triggers on





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS380. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Average Power
Average power means that the energy transfer rate is to be averaged over many periods of the lowest frequency involved. For a CW signal, the lowest frequency and highest frequency are the same, so average power and power are the same. For an amplitude modulated wave, the power must be averaged over many periods of the modulation component of the signal as well.

Dynamic range
Dynamic range the ratio of a specified maximum level of a parameter, such as power, current, voltage or frequency, to the minimum detectable value of that parameter.

Modulation
Modulation is the process by which the characteristic of one wave (the carrier) is modified by another.

Repeatability
Repeatability is the variation in a number of repeated measured quantities when measurement conditions are changed and restored. The value corresponds to half the spread between the minimum and maximum value measured.

Please contact us for your TEKTRONIX TDS380 CALIBRATION and/or TEKTRONIX TDS380 2 Ch Analog Oscilloscope REPAIR
