TEKTRONIX TDS460 REPAIR and TEKTRONIX TDS460 CALIBRATION

Custom-Cal has a high success rate in the repair of the TEKTRONIX TDS460. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS460 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS460 (TDS-460)   Description / Specification:

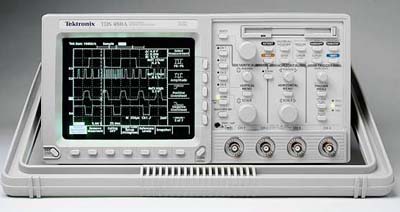

TEKTRONIX TDS460

350 MHz Digitizing Oscilloscope. Channels: 4. Digitizers - 4. Sample Rate - 100 MS/sec on all channels. Sensitivity - 1 mV to 10 V/div (with calibrated fine adjust). Position Range - ±5 Divisions. Offset Range - ± 1 V from 1 to 99.5 mV/div; ± 10 V from 100 mV to 995 mV/div; ± 100 V from 1 to 10 V/div. DC Gain Accuracy - ± 1.5%. Vertical Resolution - 8-Bits (256 levels over 10.24 vertical divisions). Analog Bandwidth Selections - 20 MHz, 100 MHz, and full. Input Coupling - AC, DC or GND. Input Impedance Selections - 1 M-ohm in parallel with 15 pF, or 50 ohm (AC and DC coupling). Maximum Input Voltage - ±400 V (DC + peak AC). Derate at 20 dB/decade above 1 MHz. 1 M-ohm or GND coupled. Channel Isolation - > 100:1 at 100 MHz for any two channels. Time Bases - Main, Delayed. Time/Division Range -1 ns to 20 s/div. Time Base Accuracy - 0.005% over any interval >=1 ms. Record Length (real time and equivalent time) - Sample points per channel: 500 to 15,000. Opt. 1 M offers 60,000 points. Triggers - Main, Delayed. Main Trigger Modes - Auto, Normal, Single Sequence. Delayed Trigger - Delayed by time or events. Time Delay Range - 0 ns to 20 s. CRT Type - 7 in. diagonal, magnetic deflection. Horizontal raster-scan. P31 green phosphor. GPIB standard.





Standard Calibration $160.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS460. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Averaging
Averaging is a mathematical process to reduce the variation in a measurement by summing the data points from multiple measurements and dividing by the number of points summed.

Fall Time
Fall time is the time required for the amplitude of a pulse to decrease (fall) from a specified value (usually 90 percent of the peak value exclusive of overshoot or undershoot) to another specified value (usually 10 percent of the maximum value exclusive of overshoot or undershoot).

Noise Density
Noise Density is the amount of noise within a defined bandwidth, usually normalized to 1 Hz.

Resolution Bandwidth (RBW)
Resolution Bandwidth (RBW) is the minimum bandwidth over which you can separate two signals and still see them.
