TEKTRONIX TDS7154B CALIBRATION and TEKTRONIX TDS7154B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX TDS7154B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX TDS7154B   Description / Specification:   Spec Sheet

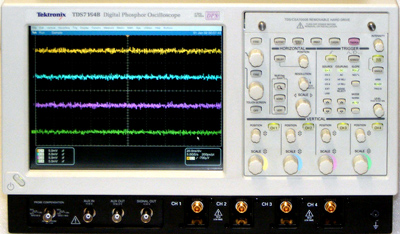

TEKTRONIX TDS7154B 4 Ch 1.5 GHz Digital Phosphor Oscilloscope

The Tektronix TDS7154B 1.5 GHz Digital Phosphor Oscilloscope features exclusive DPX acquisition technology which enables waveform capture rates up to 400,000 wfms/s to quickly find rare glitches in seconds or minutes, instead of hours or days. Innovative software solutions deliver domain expertise for advanced analysis and compliance testing, while the OpenChoice architecture enables users to integrate their expertise through the ability to easily write custom programs or utilize popular commercial software. The intuitive graphical user interface delivers sophisticated capability to advanced users without intimidating occasional users. MyScope control windows allow you to build your own control windows with only the controls, features and capabilities that you care about and are important in your job. For the first time you can create your own personalized “toolbox” of oscilloscope features. No longer do you need to search through menus for features or re-learn how to drive the oscilloscope after a break from the lab. Specifications. Input Channels: 4. Hardware Analog Bandwidth (–3 dB): 1.5 GHz. Rise Time 10% to 90% (typical): 200 ps. Rise Time 20% to 80% (typical): 135 ps. DC Gain Accuracy: ±(2% + (2% x offset). Hardware Bandwidth Limits: Requires TCA-1 MEG. Input Coupling: DC, Gnd. Input Impedance: 50 ohm ±2.5%. Vertical Resolution: 8-Bit (>11-Bit with averaging). Max Input Voltage, 50 ohm: <1 VRMS for <100 mV/div, <5 VRMS for =100 mV/div settings, also determined by TekConnect accessory. Time Base Range: 50 ps/div to 10 s/div. Time Base Delay Time Range: 5 ns to 250 s. Channel-to-channel Deskew Range: ±75 ns. Real-time Sample Rates: 1 channel (max) 20 GS/s, 2 channel (max) 10 GS/s, 3 or 4 channel (max) 5 GS/s. Maximum Record Length per Channel with Standard Memory: 4 Mb (1-CH.), 2 Mb (2-CH.), 1 Mb (4-CH.). Time Resolution (Single-shot): 50 ps (20 GS/s). Max Duration with Standard Memory: 200 µs. Trigger Sensitivity Internal DC Coupled: 0.5 div DC to 50 MHz increasing to 1.5 div at 3 GHz. Display Type: Liquid crystal active-matrix color display, 10.4 in. GPIB Port: IEEE 488.2 standard. Options. 2M - 8 Msamples max, 2 Msamples/ch. 3M - 16 Msamples max, 4 Msamples/ch. 4M - 32 Msamples max, 8 Msamples/ch. 5M - 64 Msamples max, 16 Msamples/ch. DVD - TDSDVD Optical Storage Analysis. ET3 - TDSET3 Ethernet Compliance Test Software. JA3 - TDSJIT3 Advanced Jitter Analysis Software. JE3 - TDSJIT3 Essentials. J2 - TDSDDM2 Disk Drive Analysis Software. CP2 - TDSCPM2 ANSI/ITU Telecom Pulse Compliance Testing Software. USB - TDSUSBS USB2.0 Compliance Test S/W Only. SM - Serial Communications Mask Testing. ST - Serial Pattern Trigger. PW3 - TDSPWR3 Power Measurement and Analysis Software. RTE - Serial Data Compliance and Analysis Software.





Standard Calibration $220.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS7154B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.

Please contact us for your TEKTRONIX TDS7154B CALIBRATION and/or TEKTRONIX TDS7154B 4 Ch 1.5 GHz Digital Phosphor Oscilloscope REPAIR
