   TEKTRONIX TDS744A (TDS 744A)   Description / Specification:

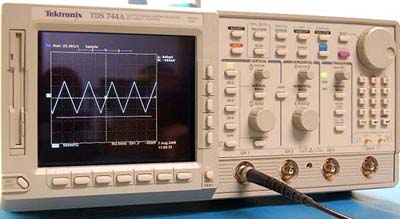

TEKTRONIX TDS744A 4 Ch 500 MHz Digitizing Oscilloscope

The Tektronix TDS 744A Four-channel Color 500 MHz Digitizing Oscilloscope is used for acquiring, displaying, and measuring waveforms. Its performance addresses the needs of both benchtop lab and portable applications. The TDS 744A introduces InstaVu Acquisition mode with waveform capture rates exceeding 400,000 waveforms per second, InstaVu allows you to instantaneously capture glitches and signal anomalies. Specifications. Channels: 4. Samplers: 4. Bandwidth: 500 MHz. Maximum Sample Rate: 2 GS/s (1 channel), 1 GS/s (2 channels), 500 MS/s (4 channels). Maximum Record Lengths: 500,000 Points. Time Bases: Main, Delayed. Time/Division Range: 500 ps to 10 s/div. Time-base Accuracy: ±25 ppm over any interval >= 1 ms. Pre-trigger Position: 0 to 100% of record. Delay Between Channels: <= 50 ps between any two channels with equal V/div and coupling. DC Gain Accuracy: ± 1.0%. Vertical Resolution: 8-Bits (256 levels over 10.24 vertical divisions) , > 13-Bits with Hi-Res, 11-Bits with averaging. Analog Bandwidth Selections: 20 MHz, 100 MHz, and full. Input Coupling: AC, DC or GND. Input Impedance Selections:1 M-ohm in parallel with 10 pF, or 50 ohm (AC and DC coupling). Maximum Input Voltage: ±400 V (DC + peak AC). Derate at 20 dB/decade above 1 MHz, 1 M-ohm or GND coupled. Channel Isolation: > 100:1 at 100 MHz and >30:1 at bandwidth for any two channels having equal V/div settings. Step Response Setting: <= 0.5% error within 20 ns of a <= 2 V step. Sensitivity: 1 mV to 10 V/div. Position Range: ±5 Divisions. Offset: ± 1 V from 1 to 100 mV/div. ± 10 V from 101 mV to 1 V/div. ± 100 V from 1.01 to 10 V/div. GPIB (IEEE 488.2) - Full Programmability. Options. Opt. 05 - Video Trigger, NTSC, PAL, HDTV, FlexFormat. Opt. 1 M - 500 K Memory Length.





Standard Calibration $220.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX TDS744A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).
