CDI 301LDIN CALIBRATION


A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the CDI 301LDIN Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Torque Wrench? Shop for Comparable Products on our   new Torque Wrench page


   CDI 301LDIN   Description / Specification:

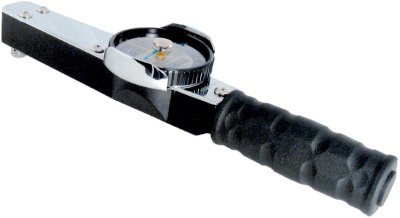

CDI 301LDIN 0-30 in-lb 1/4" Drive Dial Torque Wrench

The CDI 301LDIN Dial Torque Wrenches are designed for the automotive, nuclear and industrial markets in addition to military installations throughout the world. This series features sturdy torsion beam design for dependable long life and accuracy. Features. Sturdy body construction insures durability. Easy to read laser marked dual scale. Large easy to read dial is shock resistant and protected by a tough metal guard. Memory needle retains highest torque reading applied. Calibrated in both CW and CCW direction. Specifications: Range: 0-30 in. lb. Increments: 0.5 in. lb. Accuracy: ± 3% of indicated value, CW & CCW, from 20% to 100% of full scale. Square Drive Size: 1/4". Head Style: Ratchet. Length: 11.5". Weight: 1.1 lbs.





Standard Calibration $80.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the CDI 301LDIN. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Mechanical Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Beam Type
Beam type is the simplest form of torque wrench consists of a long lever arm between the handle and the wrench head, made of a material which bends elastically in response to applied torque. The deflection at the handle is proportional to the applied torque and material constants of the cantilever arm.

Lever
A lever is a machine consisting of a beam or rigid rod pivoted at a fixed hinge, or fulcrum. A lever amplifies an input force to provide a greater output force, which is said to provide leverage. The ratio of the output force to the input force is theideal mechanical advantage of the lever.

Strain Gauge
A strain gauge is a device used to measure strain on an object. The most common type of strain gauge consists of an insulating flexible backing which supports a metallic foil pattern. The gauge is attached to the object by a suitable adhesive, such as cyanoacrylate. As the object is deformed, the foil is deformed, causing its electrical resistance to change.
