EXFO IQ-1600 REPAIR and EXFO IQ-1600 CALIBRATION

Custom-Cal has a high success rate in the repair of the EXFO IQ-1600. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the EXFO IQ-1600 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Power Meter?
Shop for Comparable Products on our  used Optical Power Meter page or new Optical Power Meter page


   EXFO IQ-1600   Description / Specification:

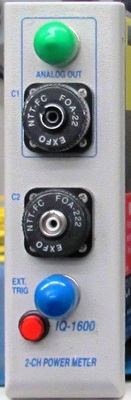

EXFO IQ-1600 High-Speed Power Meter Series

The Exfo IQ-1600 High-Speed Power Meter Series is designed for high-performance fiber-optic testing. The high sampling rate and fast stabilization time are ideal for system monitoring as well as high-density WDM component characterization and assembly. With a choice of 1-, 2- or 4-channel InGaAs photodetectors, this high-speed power meter meets wide-ranging requirements for power level and wavelength. With the automatic gain range feature, power fluctuations of up to 95 dB stabilize within 15 ms, and a continuous sampling rate of up to 256 samples per second can be achieved. You can also manually select the gain range for individual channels. In this case, dynamic range is limited to selection; but in return, stabilization times are shorter (as little as 1 ms), with sampling rates as high as 4096 samples per second.





Standard Calibration $285.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the EXFO IQ-1600. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component


Please contact us for your EXFO IQ-1600 REPAIR and/or EXFO IQ-1600 High-Speed Power Meter Series CALIBRATION
