TEKTRONIX 80C05 CALIBRATION and TEKTRONIX 80C05 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 80C05 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 80C05   Description / Specification:

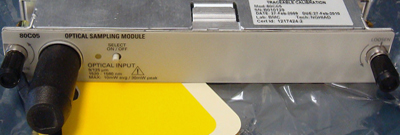

TEKTRONIX 80C05 1520 to 1580 nm Optical Sampling Module

The Tektronix 80C05 Optical Sampling Module is designed to test long wavelength (1520--1580 nm) signals. This module is intended to be used as a test and measurement tool for high bandwidth telecommunications with its high optical bandwidth >40 GHz. It has three user-selectable optical bandwidths; 20 GHz, 30 GHz and 40 GHz, or one reference receiver response; OC-192/STM-64 for 9.953 Gb/s Sonet/SDH standards. Specifications. Number of input channels: 1 optical. Effective wavelength range, typical: 1520 nm to 1580 nm. Internal fiber diameter: 9 µm/125 µm single mode. Optical return loss: >30 dB. Absolute maximum nondestructive optical input: 20 mW average power; 60 mW power at wavelength with highest relative responsivity. Maximum operating ranges: to 30 mW displayed limits, not including offset. However, signal limit is 10 mW average optical power, 20 mW displayed peak power at wavelength with highest relative responsivity. Calibrated wavelengths: 1550 nm ±20 nm. Main-instrument display vertical scale factors: 3 mW per division (max), 30 µW per division (min). Vertical offset range: ±15 mW offset relative to center of waveform display (5 divisions from either top or bottom of waveform display). Rise time, typical: 40 GHz <12 ps, 30 GHz <16 ps, 20 GHz <25 ps, OC-192/STM-64 47 ps ±10 ps.





Standard Calibration $915.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 80C05. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your TEKTRONIX 80C05 CALIBRATION and/or TEKTRONIX 80C05 1520 to 1580 nm Optical Sampling Module REPAIR
