TEKTRONIX 80E03 REPAIR and TEKTRONIX 80E03 CALIBRATION

Custom-Cal has a high success rate in the repair of the TEKTRONIX 80E03. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX 80E03 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope Plug In?
Shop for Comparable Products on our  used Oscilloscope Plug In page


   TEKTRONIX 80E03   Description / Specification:   Spec Sheet

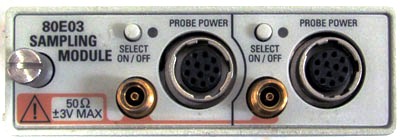

TEKTRONIX 80E03 2 Ch 20 GHz Sampling Plug-in Module

The Tektronix 80E03 is a 2 channel 20 GHz (17.5 ps risetime) bandwidth, 50 ohm sampling module. For use with CSA8000 Series Communications Signal Analyzers and TDS8000 Series Digital Sampling Oscilloscopes. Specifications. Channel input connector: Precision 3.5 mm female connector. Number of input channels: 2. Input impedance 50 ohm ±0.5 ohm. Vertical dynamic range: 1 Vpp (offset ±500 mV). Vertical operating range, maximum: ±1.6 V. Vertical nondestruct range (Maximum input voltage): 3.0 V (DC+peak AC). Vertical number of digitized bits: 14 bits full scale. Vertical sensitivity range: The range of available full scale input settings 10 mV to 1 V full scale. DC voltage accuracy, single point, within ±5 C of compensated temperature: ±2 mV±0.007 (assigned offset), ±0.02 (vertical value -- assigned offset). DC vertical voltage deviation from linear least squares fit: ±10 mV. Rise time: <= 28 ps. Analog bandwidth: 12.5 GHz, typical. Random noise, displayed: <= 800 mVRMS, 400 uVRMS, typical. Offset range: ±1.6 V.





Standard Calibration $625.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX 80E03. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.

Please contact us for your TEKTRONIX 80E03 REPAIR and/or TEKTRONIX 80E03 2 Ch 20 GHz Sampling Plug-in Module CALIBRATION
