ASSOCIATED RESEARCH 3770 CALIBRATION and ASSOCIATED RESEARCH 3770 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the ASSOCIATED RESEARCH 3770 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.




   ASSOCIATED RESEARCH 3770   Description / Specification:   Spec Sheet

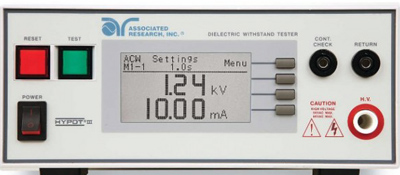

ASSOCIATED RESEARCH 3770 5kV AC, 6kV DC Hipot with IR and Ground Continuity Check

The Associated Research 3770 is a 5 kVAC 6 kVDC Hipot tester with a built-in Insulation Resistance Tester and an enhanced graphic LCD. It can be used as a bench-top instrument or controlled through entry-level automation with an RS-232 interface or with enhanced PLC Remote Control. It can also be interconnected to the HYAMP® III family of Ground Bond testers to form a complete test system that will perform AC Hipot and Ground Bond tests in a single DUT connection. It provides a simplified interface and the latest in technology & safety features. It is a perfect solution for entry level AC/DC Hipot testing applications. Specifications. Dielectric Withstand Test Mode Output Rating: 5000 V @ 20 mA AC, 6000 V @ 7.5 mA DC. Voltage Setting Range: 0 - 5.00 KV AC, 0 - 6.00 KV DC. Voltage Setting Resolution: 0.01 KV. Voltage Setting Accuracy: ± (2% of setting + 5 V) (Adjustable during operation. Disabled when key lockout is active). Maximum Limit AC Range: 0.00 - 20.00 mA, Resolution 0.01 mA. Maximum Limit DC Range: 0.00 - 7500 µA, Resolution 1 µA. Minimum Limit AC Range: 0.000 – 9.999 mA, Resolution: 0.001 mA. Minimum Limit DC Range: 0.000 – 999.9 µA, Resolution: 0.1 µA. Arc Detection Range: 0 – 9, 0 disabled. AC Voltage Waveform: Sine Wave, Crest Factor = 1.3 - 1.5. Output Frequency Range: 50 or 60 Hz, User Selectable. Ground Continuity Current: DC 0.1 A ± 0.01 A, fixed. Ground Continuity Range: 0.0 ohm - 1.50 ohm. Insulation Resistance Test Mode Voltage Setting Range: 30 - 1000 VDC, Accuracy ± (2% of setting + 5 V).





Standard Calibration $405.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the ASSOCIATED RESEARCH 3770. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.
