AEROFLEX-IFR 2023B REPAIR and AEROFLEX-IFR 2023B CALIBRATION

Custom-Cal has a high success rate in the repair of the AEROFLEX-IFR 2023B. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the AEROFLEX-IFR 2023B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Signal Generator?
Shop for Comparable Products on our  used Signal Generator page


   AEROFLEX-IFR 2023B   Description / Specification:

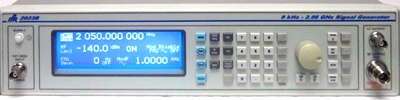

AEROFLEX-IFR 2023B 2.05 GHz Signal Generator

The IFR-Aeroflex 2023B 2.05 GHz Signal Generator is suitable for a wide range of applications in laboratory, production, and maintenance environments. Frequency resolution of 1 Hz across the complete frequency range ensures adequate resolution to characterize narrow band communication systems and components. Peak RF output levels of between + 13 dBm and -140 dBm can be set accurately with a resolution of 0.1 dB. An attenuator hold function allows control of the RF output without introducing RF level dropouts from the step attenuator to facilitate testing of receiver squelch systems, and during EMI investigations. An electronic trip protects the generator output against reverse power of up to 50 W. The 2023B has a low residual FM of typically 3 Hz and a commendable sideband noise of typically -121 dBc/Hz at 1 GHz, (20 kHz offset) to allow demanding measurements to be made at an affordable cost. Good close in phase noise is also achieved with results at 100 Hz offsets typically <-85 dBc. Comprehensive amplitude, frequency, phase, FSK and pulse modulation facilities are provided for testing all types of receivers. A MOD ON/OFF key simplifies the testing of signal to noise ratio. Amplitude modulation with a 1 dB bandwidth of 30 kHz and modulation depths of up to 99.9% with a resolution of 0.1% ensures the generator is suitable for testing AM systems and undertaking EMC immunity measurements. Carrier Frequency Range: 9 kHz to 2.05 GHz. Resolution: 1 Hz. RF Output Range: -140 dBm to +13 dBm, 0.1 dB resolution. Harmonics: Typically better than -30 dBc for RF levels up to +7 dBm, -25 dBc for RF levels up to + 13 dBm. Internal LF Generator Frequency range: 0.01 Hz to 20 kHz, Resolution 5 digit. Option 1, No attenuator (not available witI' option 3, 7 or 11). Option 2, DC operation. Option 3, High power (not available with option 1, 7 or 11). Option 4, High stability frequency standard. Option 5, Rear panel outputs. Option 7, Fast Pulse Modulator (not available with option 1, 3 or 11). Option 10, Mod input sensitivity 1 V pk. Option 11, Fast Pulse with High Power (not available with options 1, 3 or 7). Option 12, SINAD Measurement.





Standard Calibration $525.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the AEROFLEX-IFR 2023B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Channel Bandwidth
Channel Bandwidth is the bandwidth over which power is measured. This is usually the bandwidth in which almost all of the power of a signal is contained.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Overshoot
Overshoot is the distortion that follows a major transition; the difference between the peak power point and the pulse-top amplitude computed as a percentage of the pulse-top amplitude.

Rise Time
Rise time refers to the time required for a signal to change from a specified low value to a specified high value, usually 10 and 90 percent of pulse-top amplitude (vertical display is linear power).

Please contact us for your AEROFLEX-IFR 2023B REPAIR and/or AEROFLEX-IFR 2023B 2.05 GHz Signal Generator CALIBRATION
