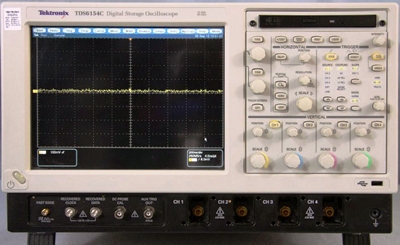

The Tektronix TDS6124C 12 GHz 4 channel Digital Storage Oscilloscope provides acquisition architecture with 40 GS/s maximum sample rate and 64 Megasamples record length on two channels (20 GS/s and 32 Megasamples on each of the four channels simultaneously), for the acquisition power you need. It provides the ultimate combination of bandwidth, sample rate, and record length for the fastest signals. The TDS6124C provides matched 12 GHz performance across any two channels using advanced, Tektronix-proprietary DSP enhancement, important for high-speed channel-channel measurements. The user-selectable DSP filter on each channel provides magnitude and phase correction, plus extension of the analog bandwidth to 12 GHz for more accurate signal fidelity on high-speed measurements – easily capturing the fifth harmonic of 3.0 GHz embedded clocks used in next-generation 6.0 Gb/s serial data standards, and even the third harmonic of 5 GHz clocks being developed for future systems. The DSP filter on each channel can also be switched off to take advantage of true 12 GHz analog bandwidth for applications needing the highest available raw data capture. Specifications. Bandwidth, Rise Time (DSP): 12 GHz, 35 ps (10-90%) (typical). True Analog Bandwidth (-3 dB), typical Rise Time: 12 GHz, 35 ps (10-90%) (typical). Hardware Bandwidth Limits (Requires TCA-1MEG Adapter): Full, 250 MHz, or 20 MHz. Input Coupling: DC, GND. Input Impedance: 50 ohm ±2%. Vertical Resolution: 8 bit (>11 bit with averaging). Max Input Voltage, 50 ohm: <1 VRMS for <1 V full-scale, <5.5 V for >=1 V full-scale. DC Gain Accuracy: ±2%. Timebase System. Timebase Range: 25 ps to 40 s/div; Interpolation down to 500 fs/pt. Timebase Delay Time Range: 5 ns to 250 s. Channel-to-Channel Deskew Range: ±75 ns. Trigger Jitter (RMS): <1 psRMS (typical). Clock Stability: <1 ppm (typical), <2.5 ppm (guaranteed) Acquisition System. Max Sample Rate: 40 GS/s on 2 channels, 20 GS/s on 4 channels. Equivalent Time Sample Rate (max): 2 TS/s. Maximum Record Length per Channel: 4 M on two channels; 2 M on all 4 channels, (64 M on two channels; 32 M on all 4 channels (requires Opt. 4M)). Maximum Time Duration Captured at Highest Real-time Resolution (two Channels): 100 µs (Standard Memory). Options. Opt. 2M – 16 MSamples on two channels; 8 MSamples on all channels. Opt. 3M – 32 MSamples on two channels; 16 MSamples on all channels. Opt. 4M – 64 MSamples on two channels; 32 MSamples on all channels. Opt. CP2 – TDSCPM2 ANSI/ITU Telecom Pulse Compliance Testing Software (requires Opt. SM). Opt. DVI – TDSDVI DVI Compliance Test Solution. Opt. ET3 – TDSET3 Ethernet Compliance Test Software. Opt. HT3 – HDMI Compliance Test Software. Opt. JA3 – TDSJIT3 v2.0 Advanced Jitter Analysis Software. Opt. JE3 – TDSJIT3 v2.0 Essentials Jitter Analysis Software. Opt. J2 – TDSDDM2 Disk Drive Analysis Software. Opt. PW3 – TDSPWR3 Power Measurement and Analysis Software. Opt. RTE – TDSRT-Eye™ Serial data compliance and analysis software. Opt. RJA – Software Bundle of TDSJIT3 v2.0 (Opt. J3A), TDSRT-Eye (Opt. RTE), and Protocol Trigger Decode (Opt. PTD). Opt. RSA – Software Bundle of TDSJIT3 v2.0 (Opt. J3A), RT-Eye (Opt. RTE), Serial Trigger (Opt. ST), Protocol Trigger and Decode (Opt. PTD), and Serial Mask testing (Opt. SM). Opt. PCE – PCI Express™ Compliance Module for Opt. RTE. Opt. PTD – Protocol Trigger and Decode (provides protocol decode on all models, requires Opt. ST for protocol triggering on the TDS6000C Series only). Opt. IBA*9 – InfiniBand® Compliance Module for Opt. RTE. Opt. SM – Serial Communications Mask Testing (enables hardware clock recovery). Opt. SST – SATA and SAS Analysis Software Module for Opt. RTE. Opt. ST – Serial Pattern Trigger (enables hardware clock recovery). Opt. USB – TDSUSBS USB 2.0 Compliance Test SW Only.
|
