NEW UC INSTRUMENTS GM8001B SALES and UC INSTRUMENTS GM8001B CALIBRATION

Custom-Cal has for sale a new UC INSTRUMENTS GM8001B. Also, short calibration turn times minimize downtime and reasonable rates decrease your long-term cost of ownership and minimizes downtime of the UC INSTRUMENTS GM8001B. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Lightwave Measurement System?
Shop for Comparable Products on our  used Lightwave Measurement System page or new Lightwave Measurement System page


List Price for a new UC INSTRUMENTS GM8001B, $3,200.00   UC INSTRUMENTS GM8001B   Description / Specification:   Spec Sheet

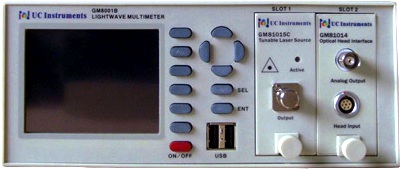

UC INSTRUMENTS GM8001B 2 Slot Lightwave Multimeter Mainframe

The UC Instruments GM8001B Lightwave Multimeter Display with Two Channels, can be configured as the following. Single or dual channel optical power meter with ranges from +23 to -80 dBm. Single or dual channel tunable laser source, 1525.00 nm to 1610.00 nm. Single or dual channel tunable filter, 1528.00 nm to 1603.00 nm. Optical attenuator, 0 to 60 dB. Single or dual channel optical spectrum analyzer, 1529.00 nm to 1602.00 nm. Optical channel monitor, 1529.00 nm to 1602.00 nm. Loss test set. Return loss test set. Tunable laser source full range sweep with 1 pm minimum step. Capable of being configurated as a passive optical component in a testing system to record testing spectrum curve.
Specifications.

Display: Graphical display 320 X 240 points visible, monochrome.
Display Resolution (Power Sensor Modules): 0.001 dB/dBm,0.001 nW / uW / mW.
Compatibility: GM8001B support GM81xxxxx serial modules.
Data Acquisitions Memory: 16M; 16M bits, flash.
Selectable data averaging time: dependent on sensor module.
Selectable total data averaging time: 20 ms to 23:59:59 h.
Interfaces: RS232, ETHERNET, USB.
Number of Modules: two.





Functional Test $105.00 *
*This is a Web introductory price for one calibration of the UC INSTRUMENTS GM8001B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component


Please contact us for your new UC INSTRUMENTS GM8001B sale price and/or UC INSTRUMENTS GM8001B CALIBRATION
