JDSU MEDFA-A1 CALIBRATION and JDSU MEDFA-A1 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the JDSU MEDFA-A1 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Amplifier EDFA?
Shop for Comparable Products on our  used Optical Amplifier EDFA page


   JDSU MEDFA-A1   Description / Specification:

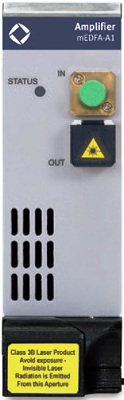

JDSU MEDFA-A1 Erbium-Doped Fiber Amplifier MAP Series

The JDSU MEDFA-A1 Multiple Application Platform (MAP) Erbium-Doped Fiber Amplifier (mEDFA-A1) series is optimized for the industry-leading MAP-200 platform from JDSU. Based on the previous-generation MAP, the MAP-200 is the first photonic layer lab and manufacturing platform that is LAN Extensions for Instrumention (LXI)- compliant by conforming to the required physical attributes, Ethernet connectivity, and interchangeable virtual instrument (IVI) drivers. The MAP-200 platform is optimized for density and maximum configurability to meet specific application requirements in the smallest possible foot print. The MAP EDFA has a saturated output power ranging from 14 dBm to 21 dBm, features noise figures as low as 3.7 dB and has gain flatness better than 2.0 dB. All MAP EDFA models are available for operation in C- or L-band. Key Features. Pre-amp, booster and in-line configurations. High output power and gain maximize operating range. Low noise figure minimizes optical impairment. Monitoring and alarms available. Can be automated when used with MAP-200 LXI-compliant interfaces and IVI drivers. Applications. In-line, pre-amp and booster amplifier emulation. Dense wavelength division multiplexing (DWDM) transmission for multi-channel applications. SONET/SDH systems for single channel applications. Optical signal-to-noise ratio (OSNR) experiments.





Standard Calibration $415.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the JDSU MEDFA-A1. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component


Please contact us for your JDSU MEDFA-A1 CALIBRATION and/or JDSU MEDFA-A1 Erbium-Doped Fiber Amplifier MAP Series REPAIR
