NEW UC INSTRUMENTS GM8026 SALES and UC INSTRUMENTS GM8026 CALIBRATION

Custom-Cal has for sale a new UC INSTRUMENTS GM8026. Also, short calibration turn times minimize downtime and reasonable rates decrease your long-term cost of ownership and minimizes downtime of the UC INSTRUMENTS GM8026. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Laser Source (DFB-LD-WDM-BBS)?
Shop for Comparable Products on our  used Laser Source (DFB-LD-WDM-BBS) page or new Laser Source (DFB-LD-WDM-BBS) page


List Price for a new UC INSTRUMENTS GM8026, $3,500.00   UC INSTRUMENTS GM8026   Description / Specification:   Spec Sheet

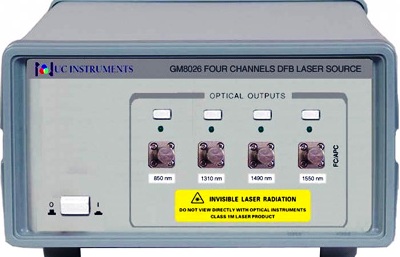

UC INSTRUMENTS GM8026 Four Channel Desktop DFB Laser Source

The UC INSTRUEMNTS GM8026 Four Channel Desktop DFB Laser Source offers superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specially designed for volume Couplers and PLC production line applications. The GM8026 laser source is a High Performance, Small Dimension, Fast Startup, Affordable Optical Laser Source. It provides four channels high performance, fixed wavelength laser output. Specifications. Operation Wavelength: 850 / 1310 / 1490 / 1550 nm. Optional Wavelengths: 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625 nm. Wavelength Accuracy: +/- 5 nm. Output Power: >= 1.0 mW. Connector Type: FC/APC (Other Adaptor Can Be Customerized). -3 dB Bandwidth: < 0.1 nm. -20 dB Bandwidth: < 0. 5 nm. Side mode suppression ratio: > 35 dB. Output Power Stability within 15 mins : <= +/- 0.02. Output Power Stability within 24 hrs: <= +/- 0.05. Operation Temperature: 0 to +40 C. Dimensions: 200 mm H, 105 mm W, 250 mm D. Weight: 2.5 kg.





Standard Calibration $550.00 *
*This is a Web introductory price for one calibration of the UC INSTRUMENTS GM8026. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Absolute Wavelength Accuracy
Absolute Wavelength Accuracy is the maximum difference between the actual wavelength and the displayed wavelength of the Optical Source. Wavelength is defined as wavelength in vacuum.

Decibel (dB)
A unit of measurement of optical power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

Nanometer (nm)
A unit of measure used to measure wavelength of light, meaning one one-billionth of a meter

Relative Intensity Noise (RIN)
Relative intensity noise (RIN), describes the instability in the power level of a laser. The noise term is important to describe lasers used in fiber-optic communication and LIDAR remote sensing. It is the square of the (spectrally resolved) RMS optical power amplitude divided by the measurement bandwidth and the square of the average optical power, expressed in dB/Hz.

Total Return loss
In an optical fiber, the loss that takes place at any discontinuity of refractive index, especially at an air-glass interface such as a fiber endface, at which a fraction of the optical signal is reflected back toward the source. RL = - 10log10 (Preflected/Preference)

Please contact us for your new UC INSTRUMENTS GM8026 sale price and/or UC INSTRUMENTS GM8026 CALIBRATION
