NEW UC INSTRUMENTS GM8040 SALES and UC INSTRUMENTS GM8040 CALIBRATION

Custom-Cal has for sale a new UC INSTRUMENTS GM8040. Also, short calibration turn times minimize downtime and reasonable rates decrease your long-term cost of ownership and minimizes downtime of the UC INSTRUMENTS GM8040. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Attenuator?
Shop for Comparable Products on our  used Optical Attenuator page or new Optical Attenuator page


List Price for a new UC INSTRUMENTS GM8040, $3,650.00   UC INSTRUMENTS GM8040   Description / Specification:   Spec Sheet

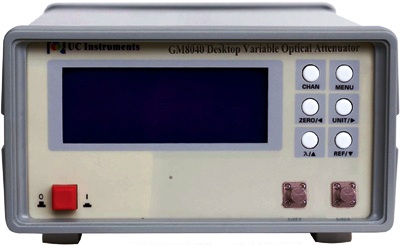

UC INSTRUMENTS GM8040 Variable Optical Attenuator

The UC INSTRUMENTS GM8040 Desktop Variable Optical Attenuator provides high performance in channel balance, power equalization, gain tilt and power adjustment of DWDM systems, EDFA, AWG & PLC components, optical amplifiers, and other general-purpose fiber optical test and measurement applications. Specifications. Wavelength Range: 1310/1550 nm. Attenuator Range: 0 to 60 dB. Insertion Loss: <2.5 dB. Fiber type: 9/125 um single mode. Connector Type: FC/APC Connector. Attenuator Accuracy: <= +/- 0.1 dB typ (0 to 40 dB). Repeatability: <= +/- 0.05 dB. Polarization Depend Loss: <= 0.1 dB. Polarization Mode Dispersion: 5 fs. Return Loss: > 45 dB. Dimensions: 200 mm H, 105 mm W, 250 mm D. Weight: 3 kg.





Standard Calibration $260.00 *
*This is a Web introductory price for one calibration of the UC INSTRUMENTS GM8040. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Coherence Length
Average distance over which superimposed waves lose their phase relationships

Linewidth
Linewidth is the width of a spectral line in terms of wavelength, wave number and frequency.

Power Flatness Versus Wavelength
When changing the wavelength at constant power setting and recording the differences between actual and displayed power levels, the power flatness is ± half the span (in dB) between the maximum and the minimum of the measured power levels.

Spectral Width
Spectral Width is the wavelength interval over which the magnitude of all spectral components is equal to or greater than a specified fraction of the magnitude of the component having the maximum value. In optical communications applications, the usual method of specifying spectral width is the full width at half maximum. This is the same convention used in bandwidth, defined as the frequency range where power drops by less than half (at most -3 dB).

Telecom Bands
Optical fiber communications typically operate in a wavelength region corresponding to one of the following Bands. O Band (original): 1260–1360 nm. E Band (extended): 1360–1460 nm. S Band (short wavelengths): 1460–1530 nm. C Band (conventional): 1530–1565 nm. L Band (long wavelengths): 1565–1625 nm. U Band (ultralong wavelengths): 1625–1675 nm


Please contact us for your new UC INSTRUMENTS GM8040 sale price and/or UC INSTRUMENTS GM8040 CALIBRATION
