NEW UC INSTRUMENTS GM81022L SALES and UC INSTRUMENTS GM81022L CALIBRATION

Custom-Cal has for sale a new UC INSTRUMENTS GM81022L. Also, short calibration turn times minimize downtime and reasonable rates decrease your long-term cost of ownership and minimizes downtime of the UC INSTRUMENTS GM81022L. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Tunable Laser Source (TLS)?
Shop for Comparable Products on our  used Tunable Laser Source (TLS) page or new Tunable Laser Source (TLS) page


List Price for a new UC INSTRUMENTS GM81022L, $6,800.00   UC INSTRUMENTS GM81022L   Description / Specification:   Spec Sheet

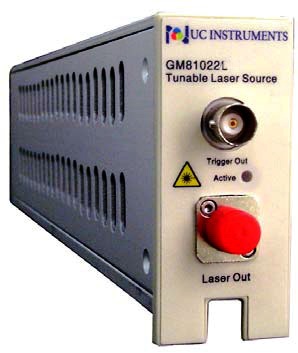

UC INSTRUMENTS GM81022L L-Band Tunable Laser Module

The UC INSTRUMENTS GM81022L Tunable Laser Module offers superior performance for the test of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. A GM8001B mainframe can host 2 Tunable Laser modules. Specifications. Wavelength range: 1566.00 to 1610.00 nm. Output Power: >= 10 dBm. Wavelength resolution: 1.0 pm. Absolute wavelength accuracy: +/- 10 pm, tpy. < 5 pm. Relative wavelength accuracy: +/- 5 pm, Typ. +/- 2 pm. Wavelength repeatability: +/- 2 pm, typ. +/- 1 pm. Wavelength stability (typ., 24 hrs at constant temperature: <= +/- 2 pm. Tuning speed: <= 2 ms per step. Power stability: +/- 0.05 dB, 1 hour. Typ., +/- 0.1 dB, 24 hours. Power repeatability: +/- 0.05 dB. Power linearity: +/- 0.3 dB. Power flatness versus wavelength: 0.3 dB typ., 0.5 dB max.. Side-mode Suppression ratio: >= 50 dBc. Relative intensity noise (RIN. Typ.): < -135 dB. Output optical interface: PM, FC/PC connector. Dimensions: 75 mm H, 32 mm W, 310 mm D [3.5" (L) x 8.5" (W) x 12.5" (H)].





Standard Calibration $475.00 *
*This is a Web introductory price for one calibration of the UC INSTRUMENTS GM81022L. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component


Please contact us for your new UC INSTRUMENTS GM81022L sale price and/or UC INSTRUMENTS GM81022L CALIBRATION
