NEW UC INSTRUMENTS GM83002 SALES and UC INSTRUMENTS GM83002 CALIBRATION

Custom-Cal has for sale a new UC INSTRUMENTS GM83002. Also, short calibration turn times minimize downtime and reasonable rates decrease your long-term cost of ownership and minimizes downtime of the UC INSTRUMENTS GM83002. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Optical Power Sensor?
Shop for Comparable Products on our  used Optical Power Sensor page or new Optical Power Sensor page


List Price for a new UC INSTRUMENTS GM83002, $2,500.00   UC INSTRUMENTS GM83002   Description / Specification:   Spec Sheet

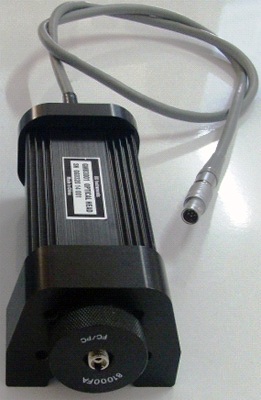

UC INSTRUMENTS GM83002 Optical Power Meter Head

The UC Instruments GM83002 Optical Power Meter Head when used with the GM81014 or GM81016 Power Head Interface Module offers superior performance in testing DWDM components, AWG & PLC components, optical amplifiers, and performing other general-purpose fiber optical test and measurement applications. A GM8001B mainframe can host any two of the four Optical Power Meter modules making a high performance, compact dimensions, fast startup, and affordable optical power meter test system. The system provides low / high power, single / dual channel optical power meter modules options. UC Instruments can also provide high channel count solution up to 16 channels. Specifications when used with GM81014 or GM81016 Power Head Interface Module. Sensor Element: Single Channel InGaAs (GM81014), Dual Channel InGaAs (GM81016). Wavelength Range: 850 to 1700 nm. Power Range: + 23 to -60 dBm. Application Fiber Type: Standard SM and MM up to 62.5 um core size. Uncertainty (accuracy) at reference condition: +/- 4% (1200 nm to 1610 nm). Relative Uncertainty (accuracy) at reference condition: < 0.02 dB Typical. Linearity (power): <= +/- 0.06 dB (1200 nm to 1610 nm, +20 to -60 dBm). Return Loss: > 40 dB. Operation Temperature: 0 to +40C. Recalibration Period: 2 years. Dimensions: 75 mm H, 32 mm W, 310 mm D. Weight 0.5 kg.





Standard Calibration $160.00 *
*This is a Web introductory price for one calibration of the UC INSTRUMENTS GM83002. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Coherence Length
Average distance over which superimposed waves lose their phase relationships

Linewidth
Linewidth is the width of a spectral line in terms of wavelength, wave number and frequency.

Power Flatness Versus Wavelength
When changing the wavelength at constant power setting and recording the differences between actual and displayed power levels, the power flatness is ± half the span (in dB) between the maximum and the minimum of the measured power levels.

Spectral Width
Spectral Width is the wavelength interval over which the magnitude of all spectral components is equal to or greater than a specified fraction of the magnitude of the component having the maximum value. In optical communications applications, the usual method of specifying spectral width is the full width at half maximum. This is the same convention used in bandwidth, defined as the frequency range where power drops by less than half (at most -3 dB).

Telecom Bands
Optical fiber communications typically operate in a wavelength region corresponding to one of the following Bands. O Band (original): 1260–1360 nm. E Band (extended): 1360–1460 nm. S Band (short wavelengths): 1460–1530 nm. C Band (conventional): 1530–1565 nm. L Band (long wavelengths): 1565–1625 nm. U Band (ultralong wavelengths): 1625–1675 nm


Please contact us for your new UC INSTRUMENTS GM83002 sale price and/or UC INSTRUMENTS GM83002 CALIBRATION
