TEKTRONIX MSO2024B CALIBRATION and TEKTRONIX MSO2024B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX MSO2024B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX MSO2024B   Description / Specification:

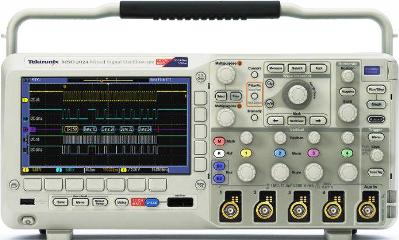

TEKTRONIX MSO2024B 4+16 Ch 200 MHz Mixed Signal Oscilloscope

The Tektronix MSO2024B 200 MHz Mixed Signal Oscilloscope, 4+16 channel. Maximum Sample Rate: 1.0 GS/s. Calculated Rise Time: 2.1 ns. Hardware Bandwidth Limits: 20 MHz. Input Coupling: AC, DC, GND. Input Impedance: 1 M-Ohm ±2%, 11.5 pF ±2 pF. Input Sensitivity Range: 2 mV/div to 5 V/div. Vertical Resolution 8 bits. Maximum Input Voltage, 1 M-Ohm: 300 VRMS with peaks <= ±450 V. DC Gain Accuracy (with offset set to 0 V): ±3% for 10 mV/div to 5 V/div, ±4% for 2 mV/div to 5 mV/div. Vertical System Digital Channels; Input Channels: 16 Digital (D15 to D0). Thresholds: Threshold per set of 8 channels. Threshold Selections: TTL, CMOS, ECL, PECL, User Defined. User-defined Threshold Range: ±20 V. Maximum Input Voltage: ±40 V. Threshold Accuracy: ±(100 mV +3% of threshold setting). Maximum Input Dynamic Range: 80 Vpk-pk (threshold setting dependent). Minimum Voltage Swing: 500 mVpk-pk. Input Impedance: 101 k ohm. Probe Loading: 8 pF. Vertical Resolution: 1 bit. Horizontal System Digital Channels; Maximum Sample Rate (when using any of channels D7-D0): 1 GS/s (1 ns resolution). Maximum Sample Rate (when using any of channels D15-D8): 500 MS/s (2 ns resolution). Maximum Record Length (all channels): 1 Mpoints. Minimum Detectable Pulse Width: 5 ns. Channel-to-Channel Skew: 2 ns typical. Horizontal System Analog Channels; Maximum Sample Rate (all channels): 1 GS/s. Maximum Record Length (all channels): 1 Mpoints. Maximum Duration of Time Captured at Highest Sample Rate (all channels): 1 ms. Time-base Range (s/div) 2 ns to 100 s. Time-base Delay Time Range: -10 divisions to 5000 s. Channel-to-Channel Deskew Range: ±100 ns. Time-base Accuracy: ±25 ppm. Display Type: 7 in. (180 mm) liquid crystal TFT color display.





Standard Calibration $190.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX MSO2024B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBc
dBc (decibels relative to the carrier) is the power ratio of a signal to a carrier signal, expressed in decibels. If the dBc figure is positive, then the relative signal strength is greater than the carrier signal strength. If the dBc figure is negative, then the relative signal strength is less than carrier signal strength.

Load Regulation
Load regulation is the capability to maintain a constant voltage (or current) level on the output channel of a power supply despite changes in the supply's load (such as a change in resistance value connected across the supply output).

Power Linearity
When changing the power level and measuring the differences (in dB) between actual and displayed power levels, the power linearity is ± half the span (in dB) between the maximum and the minimum value of all differences.

Settling Time
Settling time of an output device is the time elapsed from the application of an ideal instantaneous step input to the time at which the amplifier output has entered and remained within a specified error band, usually symmetrical about the final value.

Please contact us for your TEKTRONIX MSO2024B CALIBRATION and/or TEKTRONIX MSO2024B 4+16 Ch 200 MHz Mixed Signal Oscilloscope REPAIR
