CDI 2502MRMH CALIBRATION

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the CDI 2502MRMH Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Torque Wrench? Shop for Comparable Products on our   new Torque Wrench page


   CDI 2502MRMH   Description / Specification:

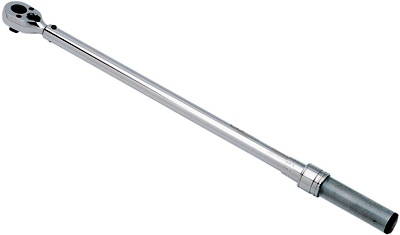

CDI 2502MRMH 30-250 in-lb 3/8" Drive Click Type Adjustable Torque Wrench

The CDI 2502MRMH metal handle click type torque wrench offers the user a rugged, industrial strength, able to withstand the rigors of professional use. Handles are lightly knurled for tough, non-slip grip. It is always a good idea to choose a torque wrench in which the desired torque setting falls within the middle range of the wrench. Features. Dual scale, calibrated dual direction. Fast, accurate and easy to set. Easy-to-read laser marked scales. Rugged for industrial use. Meets or exceeds ASME B107.14M-1994, ISO 6789 Standards. Specifications: Range: 30-250 in. lb. Increments: 1 in. lb. Accuracy: ± 3% CW ± 4% CCW of indicated value, CW, from 20% to 100% of full scale. Square Drive Size: 3/8". Head Style: Ratchet. Length: 11.25". Weight: 0.95 lbs.





Standard Calibration $80.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the CDI 2502MRMH. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Mechanical Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Click Type
Click type is an advanced method of presetting torque with a calibrated clutch mechanism. At the point where the desired torque is reached, the clutch slips, signaling the desired torque and preventing additional tightening.

Load Cell
A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells.

Stress
Stress is a physical quantity that expresses the internal forces that neighbouring particles of a continuous material exert on each other.
