NEW UC INSTRUMENTS LMBTS10-L SALES and UC INSTRUMENTS LMBTS10-L CALIBRATION

Custom-Cal has for sale a new UC INSTRUMENTS LMBTS10-L. Also, short calibration turn times minimize downtime and reasonable rates decrease your long-term cost of ownership and minimizes downtime of the UC INSTRUMENTS LMBTS10-L. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Bit Error Rate Tester (BERT)?
Shop for Comparable Products on our  used Bit Error Rate Tester (BERT) page or new Bit Error Rate Tester (BERT) page


List Price for a new UC INSTRUMENTS LMBTS10-L, $15,500.00   UC INSTRUMENTS LMBTS10-L   Description / Specification:   Spec Sheet

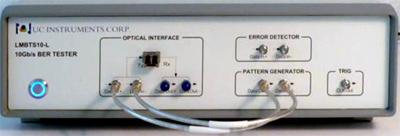

UC INSTRUMENTS LMBTS10-L 10 Gb/s Bit Error-Rate Tester

The UC INSTRUMENTS LMBTS10-L 10 Gb/s Bit Error-Rate Tester is a costeffective easy-to-use 10G optical and electrical bit-error ratio tester (BERT) for R&D and manufacturing environments as well as field installations. The LMBTS10-L incorporates an internal reference clock, a pattern generator, clock recovery circuits, and a BER analyzer, in one compact module that provides both electrical and optical interfaces at data rates up to 11.5Gb/s. The LMBST10-L is offered with an RS-232 or USB interface. It has a built-in device module slot for SFP+ and XFP transceivers, respectively. The PPRBS outputs optical NRZ waveform with bit rate within 9.95 to 11.32 Gbps, with settable data pattern of 2^7-1, 2^23-1, 2^31-1 and a fixed 64-bit user-defined pattern. The BERT system is controlled by external computer via a USB port, with full software support, drivers and programming guide for automation.





Standard Calibration $875.00 *
*This is a Web introductory price for one calibration of the UC INSTRUMENTS LMBTS10-L. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Decibel (dB)
A unit of measurement of optical power which indicates relative power. A -10 dB means a reduction in power by 10 times, -20 dB means another 10 times or 100 times overall, -30 means another 10 times or 1000 times overall and so on.

PDH
Plesiochronous Digital Hierarchy (PDH) is a transmission system for voice communication using plesiochronous synchronisation. The transmitter adds dummy information bits to allow multiple channels to be bit interleaved. The receiver discards these bits once the signals have been demultiplexed. PDH combines multiple 2 Mb/s (E1) channels in Europe and 1.544 Mb/s (DS1) channels in the US and Japan.

Spectral Width
Spectral Width is the wavelength interval over which the magnitude of all spectral components is equal to or greater than a specified fraction of the magnitude of the component having the maximum value. In optical communications applications, the usual method of specifying spectral width is the full width at half maximum. This is the same convention used in bandwidth, defined as the frequency range where power drops by less than half (at most -3 dB).

Please contact us for your new UC INSTRUMENTS LMBTS10-L sale price and/or UC INSTRUMENTS LMBTS10-L CALIBRATION
