OZ OPTICS ER-100-IR CALIBRATION and OZ OPTICS ER-100-IR REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the OZ OPTICS ER-100-IR Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Polarization Meter?
Shop for Comparable Products on our  used Polarization Meter page or new Polarization Meter page


   OZ OPTICS ER-100-IR   Description / Specification:

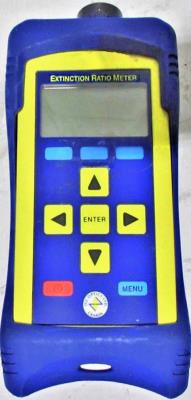

OZ OPTICS ER-100-IR 850 to 1650 nm Handheld Polarization Extinction Ratio Meter

The OZ Optics ER-100-IR Handheld Polarization Extinction Ratio Meter allows quick measurements of the output extinction ratio of light from a fiber. A rotating polarizer measures the extinction ratio and the orientation of the transmission axis with respect to the key on the connector. The meter operates in several modes. In real time mode, the meter gives the extinction ratio and alignment. In logging mode, the meter gives the worst case extinction ratio over a given time span. This mode is ideal for QA measurements. In addition the meter can provide a relative power readout, proportional to the input power in dB. This readout is updated at up to 650 times per second. The computer interface allows the unit to be used with computer control units, for alignment purposes. The combination of polarization and relative power functions allows the unit to be used for complete auto-alignment of polarization maintaining components.
Specifications.

Wavelength Range: 850 nm to 1650 nm.
Extinction Ratio Range: 30dB for 850 nm to 1290 nm, 35dB for 1290 nm to 1650 nm.
Dynamic Range: 47dB.
Extinction Ratio Accuracy: ±1dB.
Extinction Ratio Resolution: 0.01dB.
Angular Accuracy: ± 0.5 degrees.
Angular Resolution: 0.3 degrees.
Update Rate (Extinction Ratio): 2.7 Hz.
Update Rate (Relative Power): 650 Hz.
Input Optical Power: 50 μW to 1.0 mW.
Communication Interface: USB.





Standard Calibration $780.00 *
*This is a Web introductory price for one calibration of the OZ OPTICS ER-100-IR. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Chirp
A change in the optical frequency caused by direct modulation of the laser. A chirp is a signal in which the frequency increases ('up-chirp') or decreases ('down-chirp') with time. In some sources, the term chirp is used interchangeably with sweep signal.

Isolation
The extent to which optical power from one signal path is prevented from reaching another signal path.

Polarization Extinction Ratio
Polarization Extinction Ratio is the ratio of optical power in the slow axis of the polarization maintaining fiber to optical power in the fast axis within a specified wavelength range.

Sidemode Suppression Ratio
Sidemode Suppression Ratio is the ratio of average signal power to the optical power of the highest sidemode within a distance from 0.1 to 6 GHz to the signal’s optical frequency, expressed in dB.

Wavelength Stability
Wavelength Stability is the change of wavelength during given time span, expressed as ± half the span between the maximum and the minimum of all actual wavelengths.

Please contact us for your OZ OPTICS ER-100-IR CALIBRATION and/or OZ OPTICS ER-100-IR 850 to 1650 nm Handheld Polarization Extinction Ratio Meter REPAIR
