ASSOCIATED RESEARCH 8206 CALIBRATION and ASSOCIATED RESEARCH 8206 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the ASSOCIATED RESEARCH 8206 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

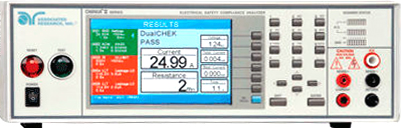

   ASSOCIATED RESEARCH 8206 (OMNIA II 8206)   Description / Specification:
ASSOCIATED RESEARCH 8206 5KVAC, 6KVDC OMNIA II Hipot / IR/ GB/ Continuity/ Line Leak

The Associated Research 8206 OMNIA II provides AC Hipot, DC Hipot, Insulation Resistance, Ground Bond / Continuity, Functional Run, and Line Leakage tests in a single DUT connection. The 8206 comes standard with an USB/RS-232 interface but is also available with optional Ethernet or GPIB. The 8206 features a color TFT display. Specifications. Dielectric Withstand Test Mode Output Rating: 5000 V @ 50 mA AC, 6000 V @ 20 mA DC. Voltage Setting Range: 0 - 5,000 V AC, 0 - 6,000 V DC. Voltage Setting Resolution: 1 V. Voltage Setting Accuracy: ± (2% of setting + 5 V). HI and LO-Limit AC Total Range: 0.000 - 9.999 mA, Resolution 0.001 mA. HI and LO-Limit DC Range: 0.0 - 999.9 µA, Resolution 0.1 µA. Arc Detection Range: 1 – 9. Ground Continuity Current: DC 0.1 A ± 0.01 A (Max. ground Resistance 1 ohm ± 0.1 ohm, fixed). AC Output Waveform: Sine Wave, Crest Factor = 1.3 - 1.5. Output Frequency Range: 50 or 60 Hz, User Selectable. Insulation Resistance Test Mode Voltage Setting Range: 30 - 1000 VDC, Resolution 1 Volt, Accuracy ± (2% of setting + 2 counts). Resistance Display Range: 0.05 M-ohm – 50,000 M-ohm (4 Digit, Auto Ranging). Ground Bond Test Mode Output Voltage Range: 3.00 – 8.00 VAC, Resolution 0.01 V, Accuracy ± (2 % of setting + 0.03V) O.C. Condition. Continuity Test Mode Output Current: DC 0.1A ± 0.01A, DC 0.01A ± 0.001A, DC 0.001A ± 0.0001A, DC 0.0001A ± 0.00001A. Total Resistance: 0.00 to 10,000 ohms. Run Test Mode DUT Power Voltage: 0 – 277 VAC Single Phase Unbalanced (One Hot or Line conductor and One Neutral). Current: 16AAC max continuous. Line Leakage Test Mode: Voltage 0 – 277 VAC, Current 16AAC max continuous. Memory: 1000 steps. Graphic Display: 800 x 480 digital TFT LCD display. Interface: Standard USB/RS-232, Ethernet, or GPIB. Options. Scanning Matrix, 4 or 8 port high voltage switching matrix with continuity.





Standard Calibration $405.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the ASSOCIATED RESEARCH 8206. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Crest Factor
Crest factor or peak-to-average ratio (PAR) is a measurement of a waveform, calculated from the peak amplitude of the waveform divided by the RMS value of the waveform

Linearity
Linearity is the relative difference between the displayed power ratio, Dx/D0, and the actual (true) power ratio Px/P0 caused by changing the displayed power level from the reference level, D0, to an arbitrary displayed level, Dx.

Phase Noise
Phase noise is the frequency domain representation of rapid, short-term, random fluctuations in the phase of a waveform, caused by time domain instabilities. Phase noise (L(f)) is typically expressed in units of dBc/Hz, representing the noise power relative to the carrier contained in a 1 Hz bandwidth centered at a certain offsets from the carrier.

Sensitivity
Sensitivity is the minimum magnitude of input signal required to produce a specified output signal having a specified signal-to-noise ratio, or other specified criteria.
