ASSOCIATED RESEARCH 8254 CALIBRATION and ASSOCIATED RESEARCH 8254 REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the ASSOCIATED RESEARCH 8254 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

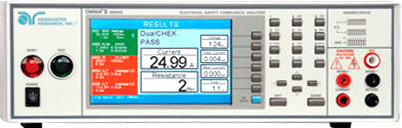

   ASSOCIATED RESEARCH 8254 (OMNIA II 8254)   Description / Specification:
ASSOCIATED RESEARCH 8254 5KVAC, 6KVDC OMNIA II Hipot / IR/ Ground Bond/ Continuity

The Associated Research 8254 OMNIA II provides AC Hipot, DC Hipot, Insulation Resistance and Ground Bond / Continuity tests in a single DUT connection. It includes a 500VA output capabilty. An optional built-in 8 port scanner is available on the 8254. The 8254 comes standard with an USB/RS-232 interface but is also available with optional Ethernet or GPIB. It features a color TFT display. Specifications. Dielectric Withstand Test Mode Output Rating: 5000 V @ 100 mA AC, 6000 V @ 20 mA DC. Voltage Setting Range: 0 - 5,000 V AC, 0 - 6,000 V DC. Voltage Setting Resolution: 1 V. Voltage Setting Accuracy: ± (2% of setting + 5 V). HI and LO-Limit AC Total Range: 0.000 - 9.999 mA, Resolution 0.001 mA. HI and LO-Limit DC Range: 0.0 - 999.9 µA, Resolution 0.1 µA. Arc Detection Range: 1 – 9. Ground Continuity Current: DC 0.1 A ± 0.01 A (Max. ground Resistance 1 ohm ± 0.1 ohm, fixed). AC Output Waveform: Sine Wave, Crest Factor = 1.3 - 1.5. Output Frequency Range: 50 or 60 Hz, User Selectable. Insulation Resistance Test Mode Voltage Setting Range: 30 - 1000 VDC, Resolution 1 Volt, Accuracy ± (2% of setting + 2 counts). Resistance Display Range: 0.05 M-ohm – 50,000 M-ohm (4 Digit, Auto Ranging). Ground Bond Test Mode Output Voltage Range: 3.00 – 8.00 VAC, Resolution 0.01 V, Accuracy ± (2 % of setting + 0.03V) O.C. Condition. Continuity Test Mode Output Current: DC 0.1A ± 0.01A, DC 0.01A ± 0.001A, DC 0.001A ± 0.0001A, DC 0.0001A ± 0.00001A. Total Resistance: 0.00 to 10,000 ohms. Memory: 1000 steps. Graphic Display: 800 x 480 digital TFT LCD display. Interface: Standard USB/RS-232, Ethernet, or GPIB. Options. Scanning Matrix, 4 or 8 port high voltage switching matrix with continuity.





Standard Calibration $405.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the ASSOCIATED RESEARCH 8254. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Average Power
Average power means that the energy transfer rate is to be averaged over many periods of the lowest frequency involved. For a CW signal, the lowest frequency and highest frequency are the same, so average power and power are the same. For an amplitude modulated wave, the power must be averaged over many periods of the modulation component of the signal as well.

Dynamic range
Dynamic range the ratio of a specified maximum level of a parameter, such as power, current, voltage or frequency, to the minimum detectable value of that parameter.

Modulation
Modulation is the process by which the characteristic of one wave (the carrier) is modified by another.

Repeatability
Repeatability is the variation in a number of repeated measured quantities when measurement conditions are changed and restored. The value corresponds to half the spread between the minimum and maximum value measured.

Please contact us for your ASSOCIATED RESEARCH 8254 CALIBRATION and/or ASSOCIATED RESEARCH 8254 5KVAC, 6KVDC OMNIA II Hipot / IR/ Ground Bond/ Continuity REPAIR
