TEKTRONIX MSO72004C CALIBRATION and TEKTRONIX MSO72004C REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the TEKTRONIX MSO72004C Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Oscilloscope?
Shop for Comparable Products on our  used Oscilloscope page


   TEKTRONIX MSO72004C   Description / Specification:   Spec Sheet

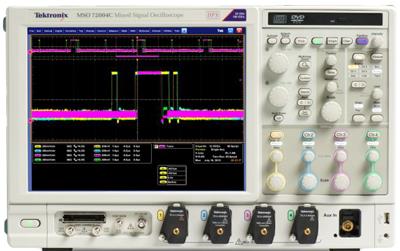

TEKTRONIX MSO72004C 4+16 Ch 20 GHz Mixed Signal Oscilloscope

The Tektronix MSO72004C with 4 analog and 16 logic channels enables efficient channel-to-channel timing checks. With timing resolution of 80 ps, the MSO72004C digital acquisition system enables you to make precise timing measurements on as many as 20 channels simultaneously. Bandwidth enhancement eliminates imperfections in frequency response all the way to the probe tip. User-selectable filters for each channel provide magnitude and phase correction for more accurate representation of extremely fast signals.

Specifications.
Analog channels: 4.
Digital channels: 16.
Analog bandwidth (user-selectable DSP enhance) (-3 dB): 20 GHz.
Hardware Analog Bandwidth (-3 dB): 16 GHz (typical).
Rise time (typical): 18 ps (10% to 90%), 14 ps (20% to 80%).
Sample rate (1, 2 ch): 100 GS/s (maximum sample rate is 50 GS/s on digital channels routed to an analog channel through the iCapture™ analog mux).
Sample rate (3, 4 ch): 50 GS/s.
Record length, points (each channel, standard): 62.5 M.

Vertical system - Analog channels.
DC gain accuracy: ±2% (of reading).
Channel delay (typical): ≤10 ps for any two channels at equal V/div and coupling.
Signal-to-Noise ratio (typical): 34 dB.
Input coupling: DC (50 Ω), GND.
Input resistance selection: 50 Ω ±3%, 1 MΩ with TCA-1MEG adapter.
Input sensitivity range: 20 to 500 mV/div (200 mV to 5 V full scale), 10 mV/div at 18 GHz (100 mV full scale).
Maximum input voltage, 50 Ω: <5.0 VRMS for ≥100 mV/div; 1.0 VRMS for <100 mV/div.

Vertical system - Digital channels.
Digital bandwidth With P6780 logic probe: 2.5 GHz.
Digital bandwidth With P6750 or P6717A logic probe: 1 GHz.
Trigger clock/qualifier input: 1.
Vertical resolution: 1 bit.
Thresholds: One per channel, independently set.
Threshold accuracy: ±75 mV + 3% of threshold setting.
Threshold resolution: 5 mV.
Minimum voltage swing: 300 mV p-p.
Maximum input voltage: ±15 V nondestruct.

Horizontal system.
Channel-to-Channel: deskew range ±75 ns.
Time base accuracy: ±1.5 ppm initial accuracy, aging <1 ppm per year.
Time base delay time range: -5.0 ks to 1.0 ks.
Trigger jitter: <100 fsRMS (1 psRMS [typical] with enhanced triggering off).





Standard Calibration $355.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the TEKTRONIX MSO72004C. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.
